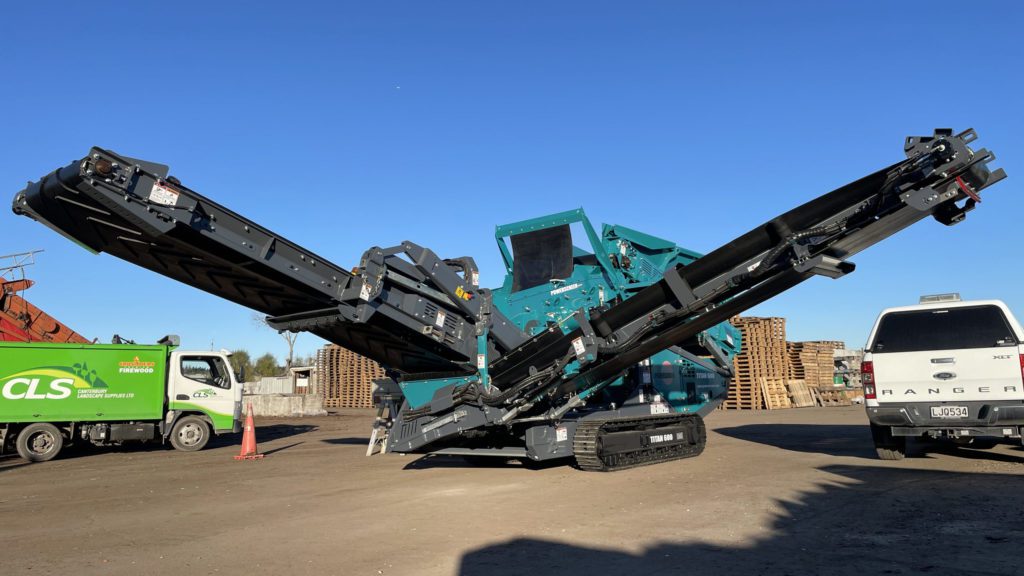

POWERSCREEN Titan 600

POA

The Titan 600 is a versatile 2-deck tracked Scalping Screen with a compact footprint and the capacity to screen up to 280TPH, depending on the application. It can be rapidly switched between a two and 3-way split, making it a highly versatile machine suitable for a range of applications.

FEATURES & BENEFITS

Versatile unit for 3 or 2-way splitting, stockpiling or scalping before or after a crusher.
Smart design minimises weight but retains strength and robustness.
Rapid conversion from 3-way split to a 2-way split.
Ultra-low fuel consumption with optimised hydraulics.
Highly aggressive screen drive.
Fits inside a 40’ shipping container to simplify the transport process and can be transported.

UDC Finance available – Find out more

output-potential	Up to 280 Tonnes Per Hour.
hopper	Capacity: 3m³ Fold-Down Rear Door for Crusher Feeding.
feeder	Heavy-Duty Belt Feeder. Width: 1000mm
screenbox	Heavy Duty 2-Deck Screen. Screen Size: 2.49m x 1.17m 2-Bearing Shaft with Direct Drive System.
oversize-tail-conveyor	Width: 1000mm Stockpile Height: 2.7m Impact Slips Along Feedboot. Variable Speed Control.
fines-side-conveyor	Width: 650mm Stockpile Height: 2.9m Hydraulically Folding.
midsize-side-conveyor	Width: 650mm Stockpile Height: 2.8m Hydraulically Folding.
weight	12,000kg
working-dimensions	Width: 10.42m Length: 10.55m Height: 3.33m
transport-dimensions	Width: 2.25m Length: 10.98m Height: 2.55m
applications	Sand & Gravel Blasted Rock River Rock Top Soil C&D Waste Composed Materials Wood By-Products Overburden Foundry Waste Processed Ores Processed Minerals
