POWERSCREEN Warrior 1400X

POA

The Powerscreen Warrior 1400X is a flexible screening machine aimed at small to medium-sized operators who require a high-performing, heavy-duty, versatile machine that remains easy to transport.

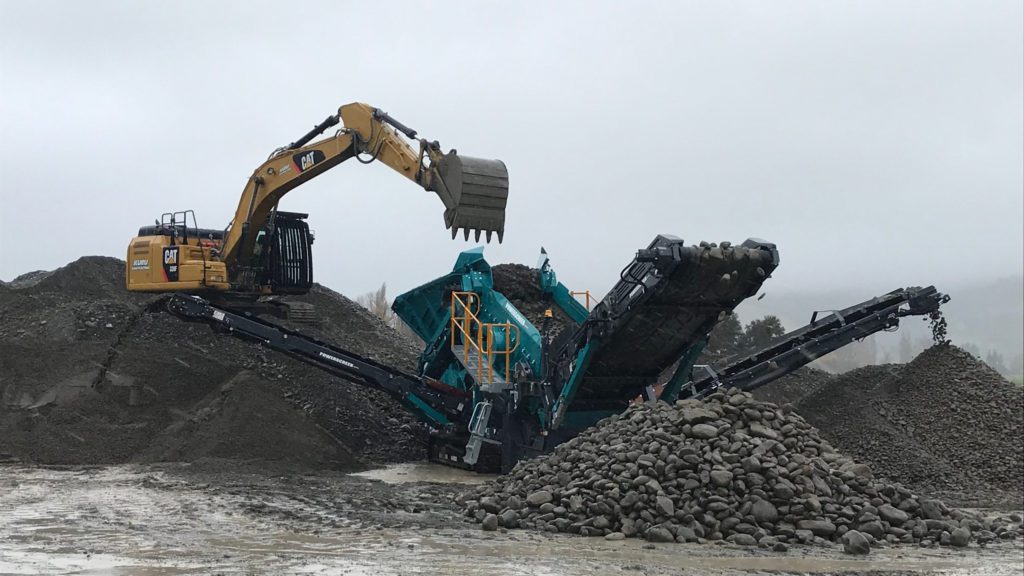

It is designed with economy in mind, with reduced fuel consumption achieved through a lower engine running speed of 1800rpm and enhanced hydraulics. A variety of media solutions mean that the Warrior 1400X is extremely efficient in scalping, screening and recycling applications. It can process mixed demolition waste, including green waste, soil, concrete, wood and asphalt.

FEATURES & BENEFITS

  • Heavy duty, incline belt feeder with rigid one-piece hopper.
  • Heavy duty, adjustable angle, grease lubricated 2-bearing, 2-deck screenbox.
  • Jack up screen facility to aid mesh changes.
  • Screen walkway and access steps.
  • Hydraulic folding conveyors with excellent stockpiling capacity.
  • Improved stockpiling capacity.
  • Rapid set-up and shutdown time.
  • Two-speed tracks.
  • Collection conveyor raise feature.
  • Reversible side conveyors (Warrior 1400X only).

UDC Finance available – Find out more

output-potential

Up to 500 Tonnes Per Hour

hopper

Capacity: 7m³
Collapsible Rear Wall for Direct Feeding.

feeder-conveyor

Width: 1300mm
Heavy-Duty Belt Feeder.
Super Grip Drive Drum.
Variable Speed Control.

screenbox

2 Bearing, 2 Deck, High Amplitude Screenbox.
Size: 3.6m x 1.25m
Adjustable Screen Angle 13° - 19°

side-conveyor-finesize

Width: 900mm
Discharge Height: 3.72m

side-conveyor-midsize

Width: 900mm
Discharge Height: 3.6m Angle Adjustable

tail-conveyor-oversize

Width: 1200mm
Discharge Height: 4m (3-Way Split)
Discharge Height: 3.4m (2-Way Split)

weight

27,200kg (2-Way Split)
30,000kg (3-Way Split)

working-dimensions

Width: 8.13m (2-Way Split), 12.59m (3-Way Split)
Length: 13.96m (2-Way Split), 14.2m (3-Way Split)
Height: 4.4m

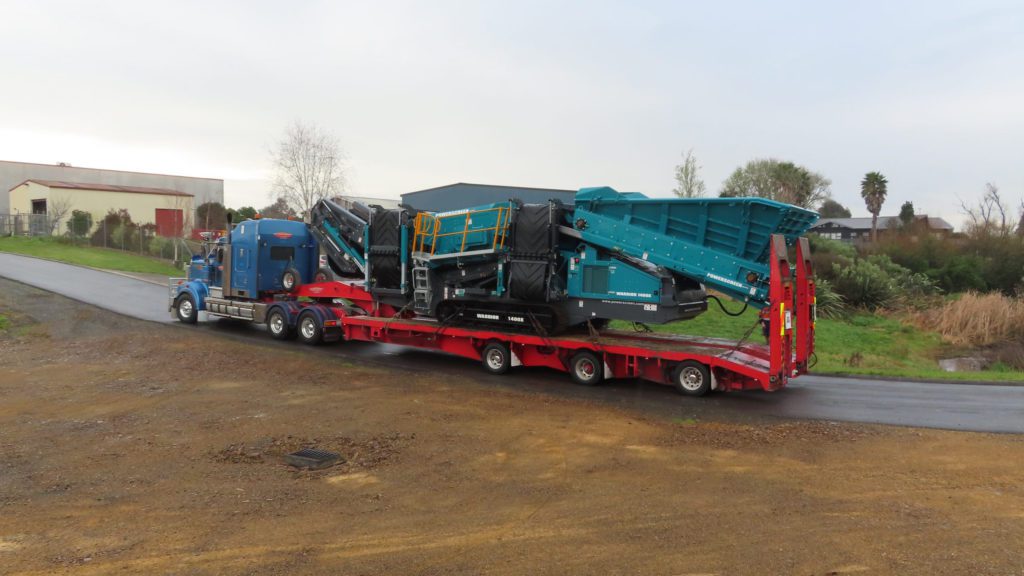

transport-dimensions

Width: 2.75m
Length: 13.62m (2-Way Split), 14.17m (3-Way Split)
Height: 3.2m
