The Terminator is a versatile, heavy-duty shredder designed to handle a broad spectrum of solid waste materials. Its hydraulic drum drive, featuring load-dependent speed control, delivers maximum shredding force. This capability ensures that even the most challenging materials are processed efficiently.
Terminator mobile
Diesel engine: 250-447 kW
Hydraulic drum drive

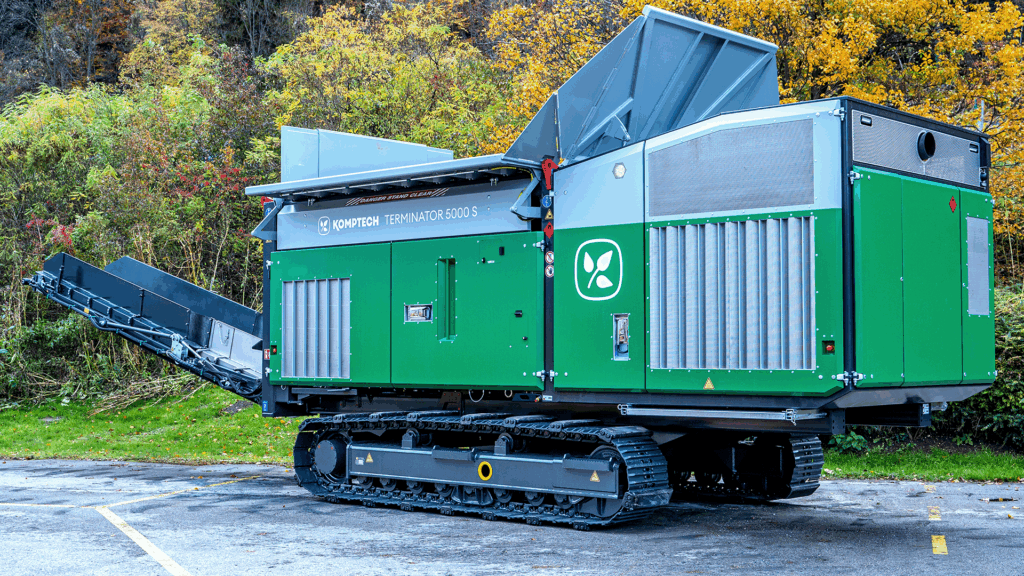

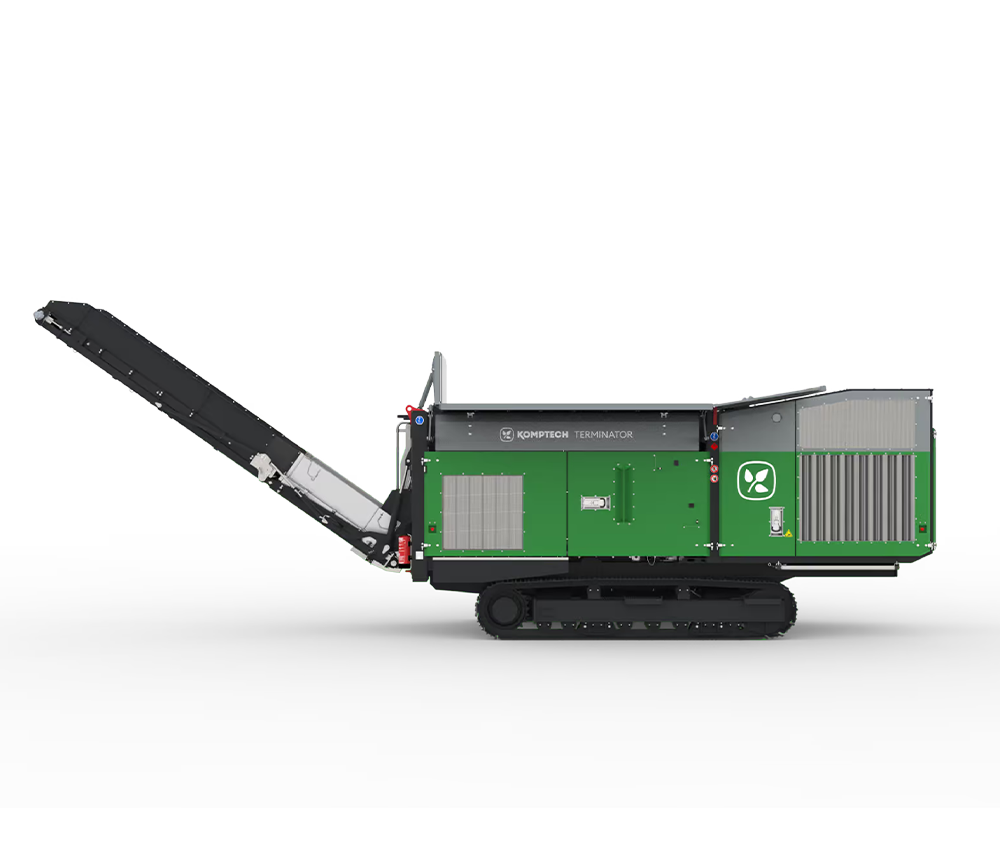

Mobility: Trailer, Track, Hook
The Komptech Terminator is a slow-running, high torque shredder built to handle nearly all types of solid waste, from municipal to bulky and commercial.
The infinitely variable cutting gap allows precise control over particle size, ensuring optimized processing for downstream recycling or waste-to-energy applications.
The processing of waste for materials recycling or energy production usually starts with shredding, to condition the material stream for further process steps. This is exactly what the Terminator is built for. As a tough, low-speed shredder it can be used on almost all types of
solid waste.
Featuring a hydraulic roller drive with load-dependent speed control, it delivers maximum shredding power even for the toughest materials.
The hydraulic drum drive with load-dependent speed control develops the highest shredding forces.
Stepless cutting gap adjustment allows sizing of the output for its intended purpose. On the mobile machines, hydraulic drive with load-dependent speed control ensures full use of the engine power. On the stationary versions, there is also the option of electro-mechanical drive for the highest efficiency. Numerous configurations and modifications are possible for all versions.

TERMINATOR RANGE
MOBILE 3400: Power 250 / 330 kW, throughput up to 45 t/h.
MOBILE 3400S: Power 250 / 330 kW, (double-sided roller drive) throughput up to 50 t/h.
MOBILE 5000: Power 340 / 460 kW, throughput up to 60 t/h.
MOBILE 5000S: Power 340 / 460 kW, (double-sided roller drive) throughput up to 80 t/h.
MOBILE 6000S: Power 447 / 608 kW, (double-sided roller drive) throughput up to 100 t/h.

APPLICATIONS

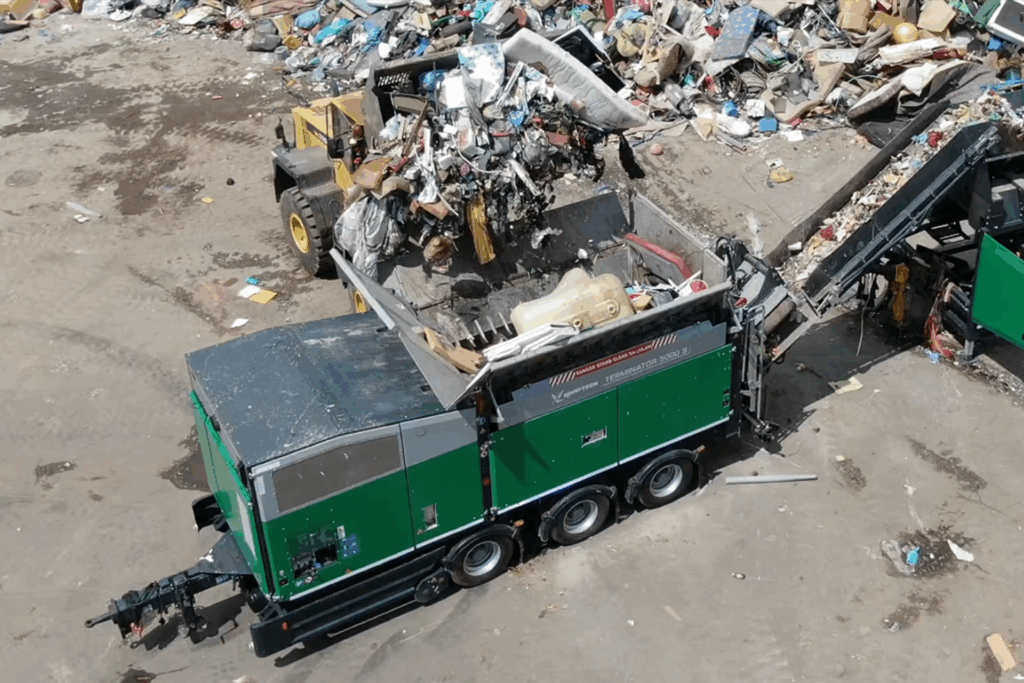

Bulky waste, commercial waste
The highest possible shredding force is required for these inhomogeneous waste streams. The Terminator’s powerful drive delivers it. The F or XXF unit is used depending on the desired degree of shredding, or the V unit (xtron) for particularly bulky materials.
Household waste
These waste streams call for consistent shredding and long tooth life. That’s what the F unit offers; its armoured teeth and easily replaceable wear protectors keep operating costs low.
Waste wood
The bigger the shredder’s feed hopper, the better, especially for waste wood. The Terminator’s hopper is larger than just about any comparable machine.
The aggressive feed of the V shredding unit and programmable reverse cycles keep throughput high.
Special applications
The Terminator shreds pretty much anything, from production waste to white goods to mixed C&Dwaste. Even tyres, whether auto or special purpose, are chewed up by the high tooth force developed by the V and XXF units.

Key Features

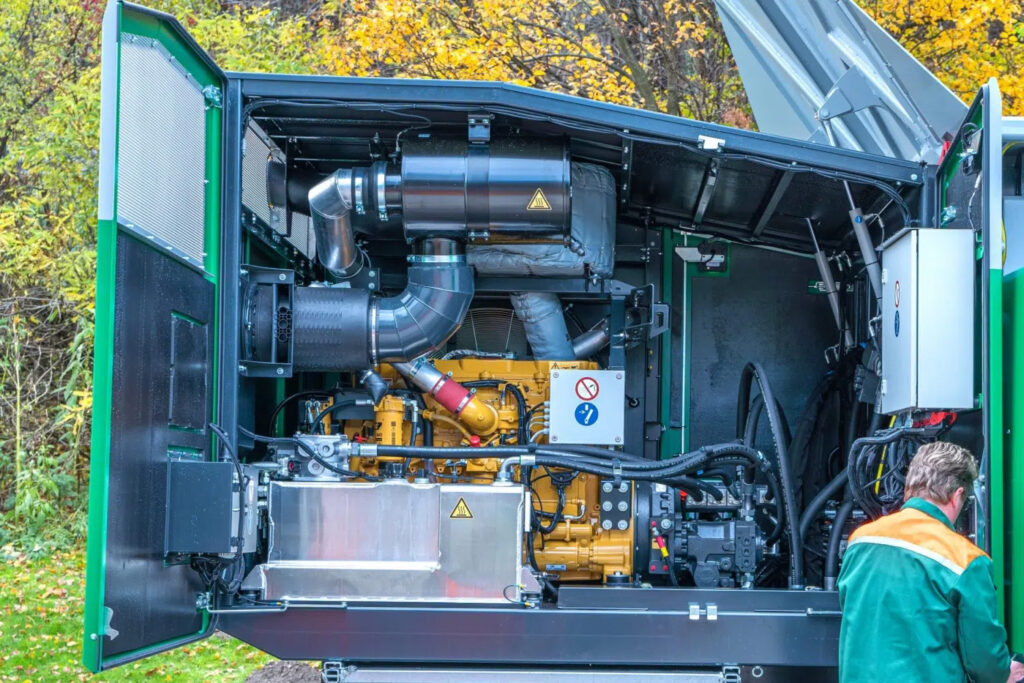

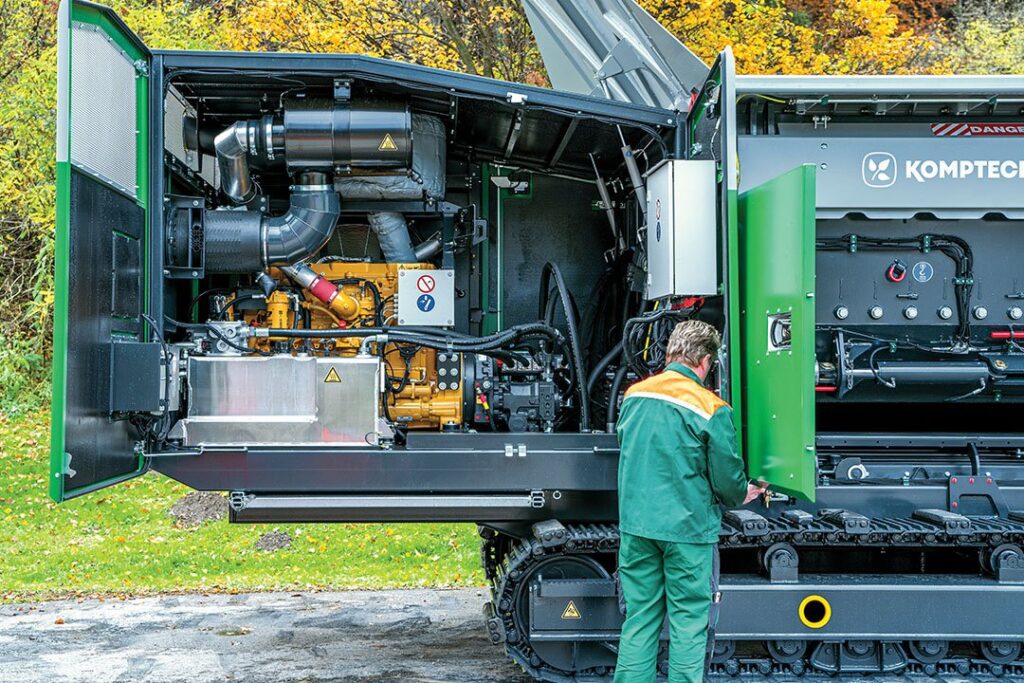

Power plant:Powerful CAT® diesel engines with the latest exhaust scrubbing High-performance cooling system for engine and hydraulics Fully encapsulated engine compartment to reduce noise emissions.

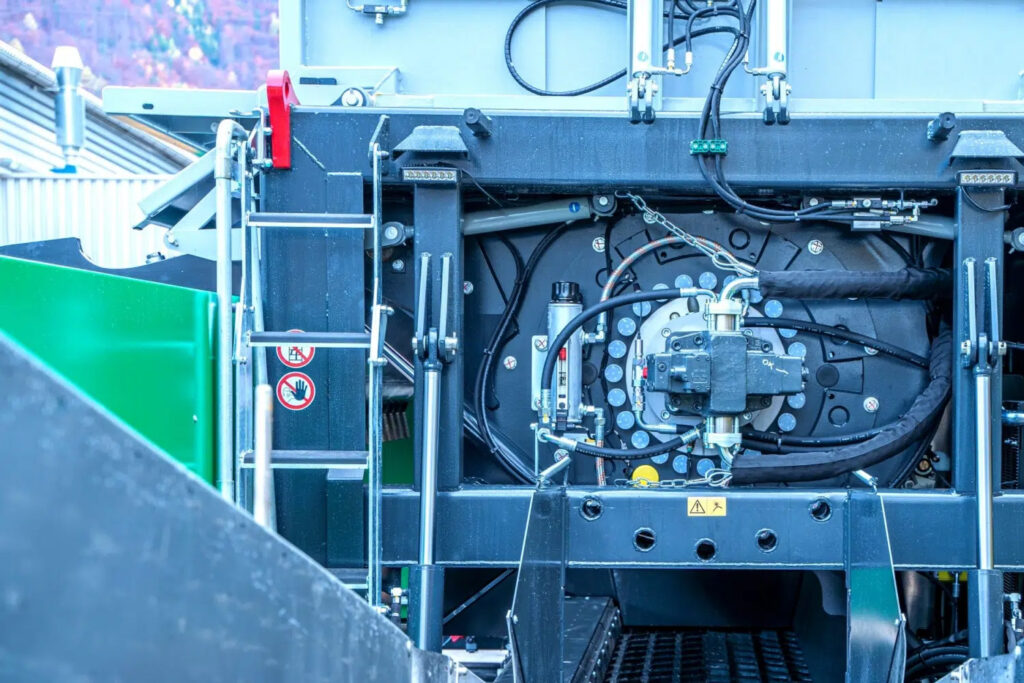

Drum drive: Hydraulic drum drive with load dependent speed control. Overload protection to protect drum and engine. S version options: Double drum drive for higher shredding force.

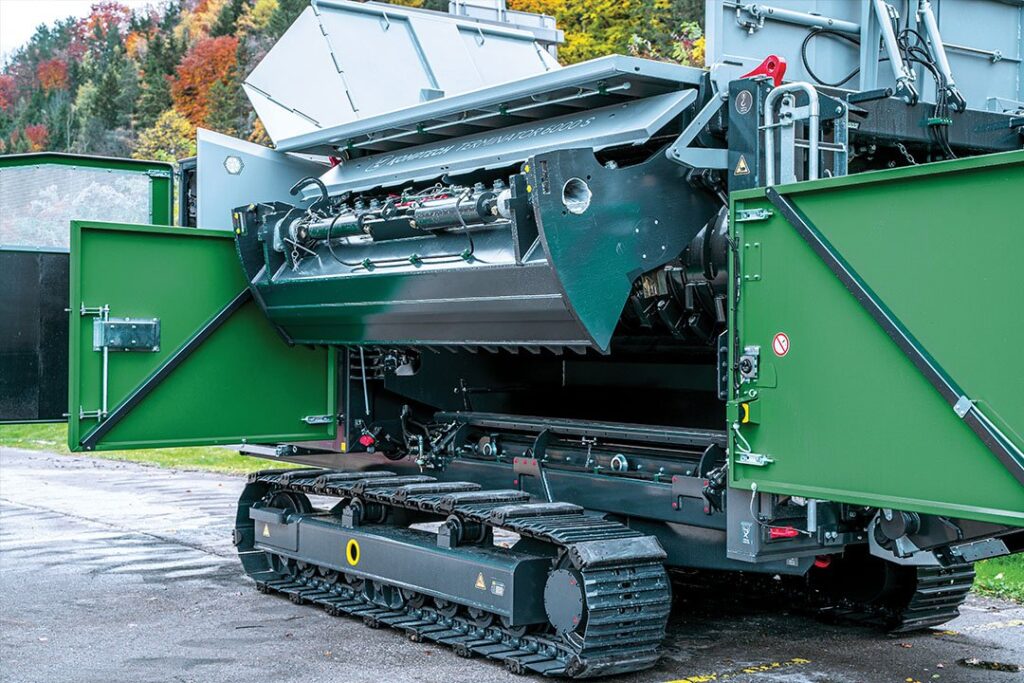

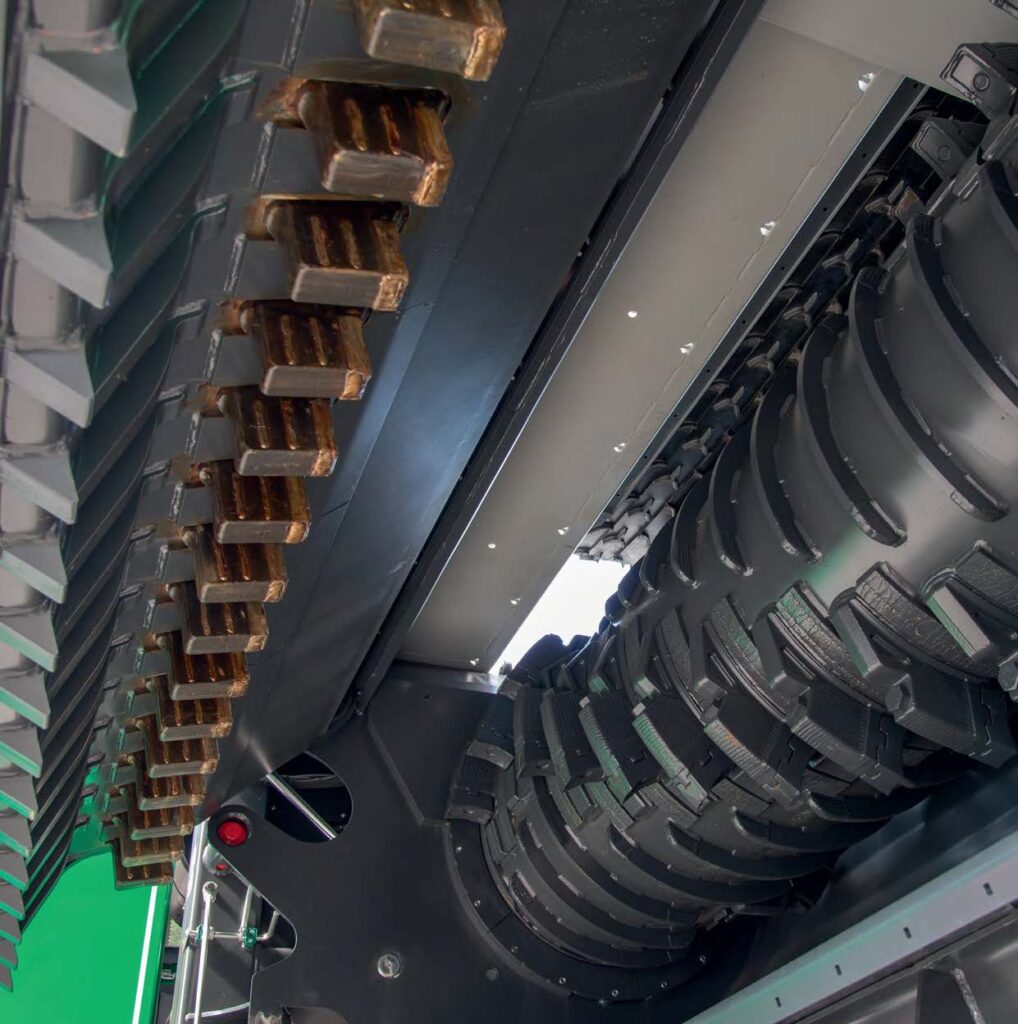

Shredding unit :Hydraulically adjustable counter comb for setting the particle size. Efficient shredding by teeth with cutting edges. High clearance version for Track: Increased discharge channel (1000 mm instead of 600mm).

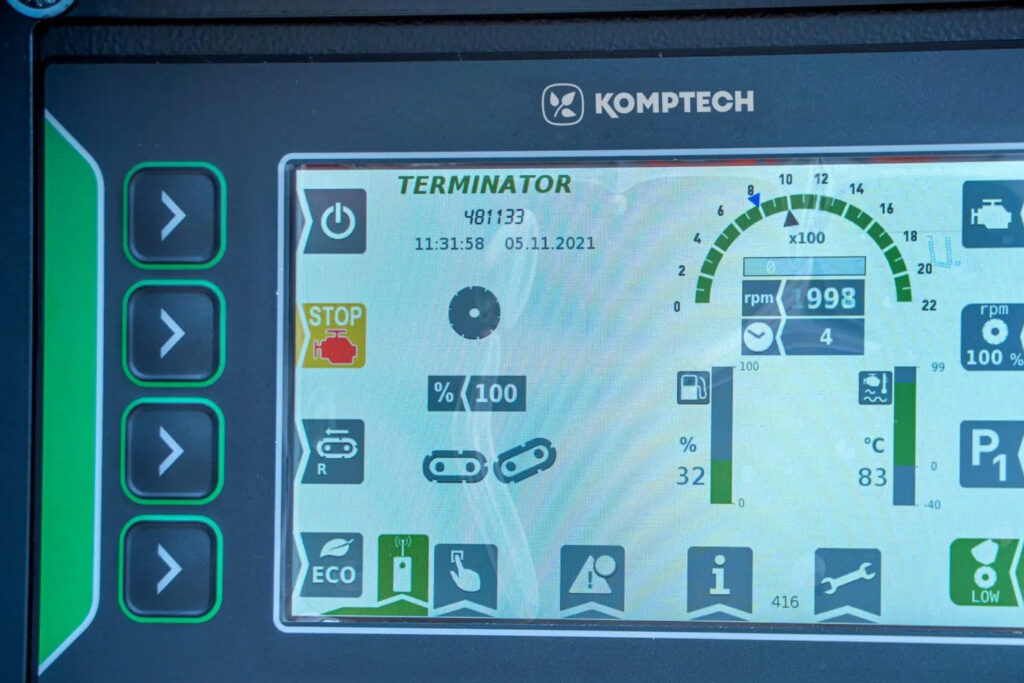

Operation :Operating panel with a 7” high resolution screen and intuitive menu guidance/Reversing program to adapt to the material and for drum self-cleaning.Onboard diagnostics, with trouble-shooting integrated into the control system for fast problem solving.

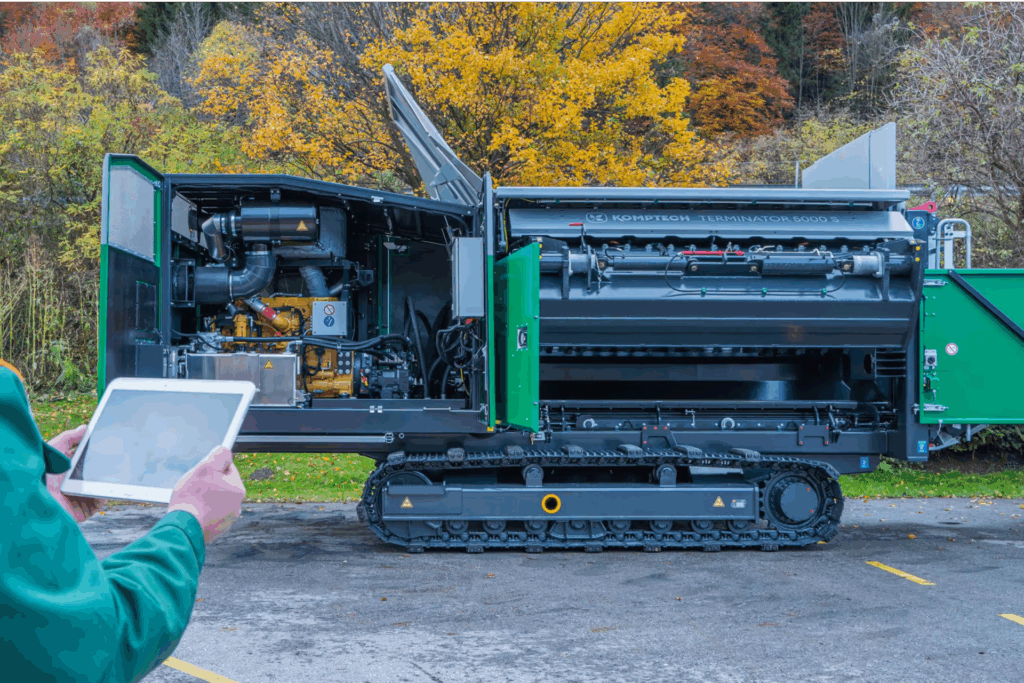

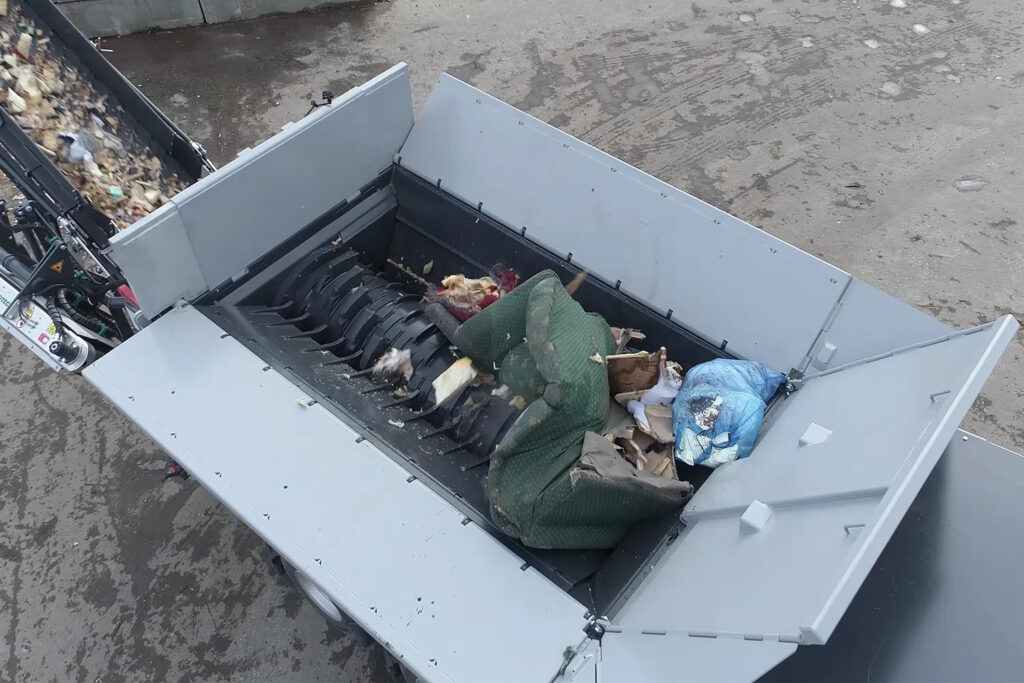

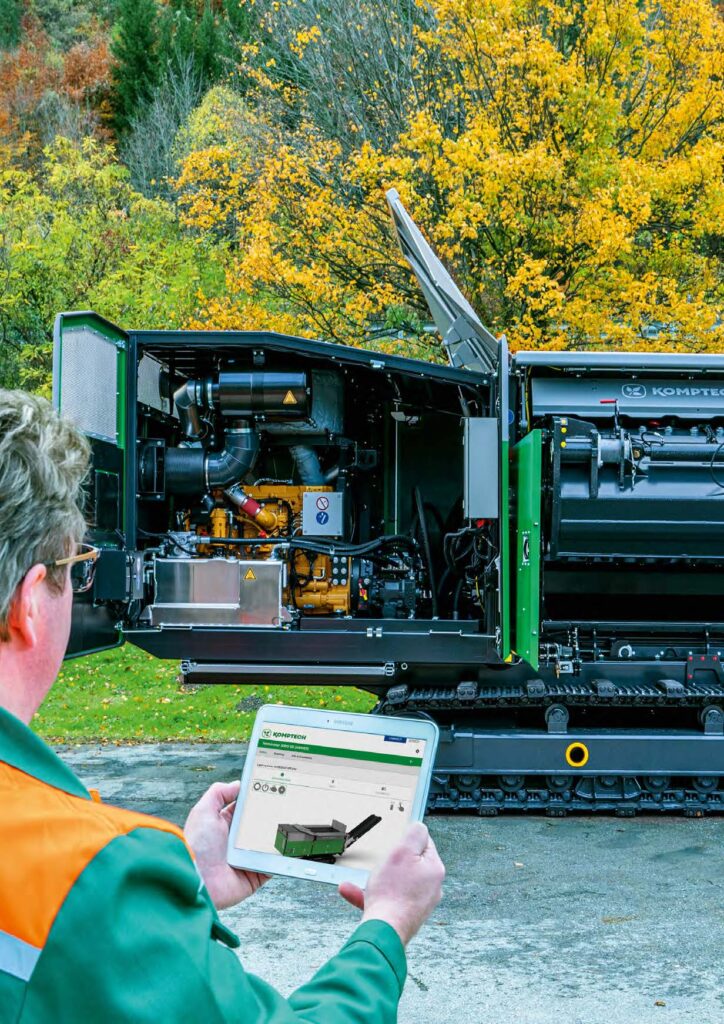

Ease of use :Hydraulic folding hopper for easy material feed. Extremely large 2 m x 3 m feed area. Steplessly adjustable discharge conveyor inclination.Maintenance Large service panels for easy access to engine and drum. All maintenance points (oils,filters, refuelling) externally accessible. Counter comb folds away for easy access to the shredding unit.
