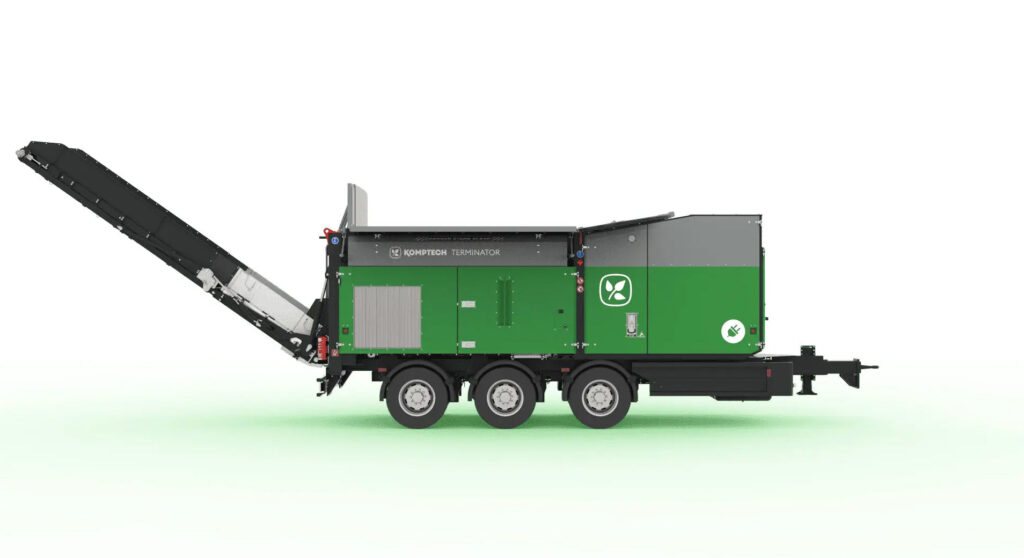

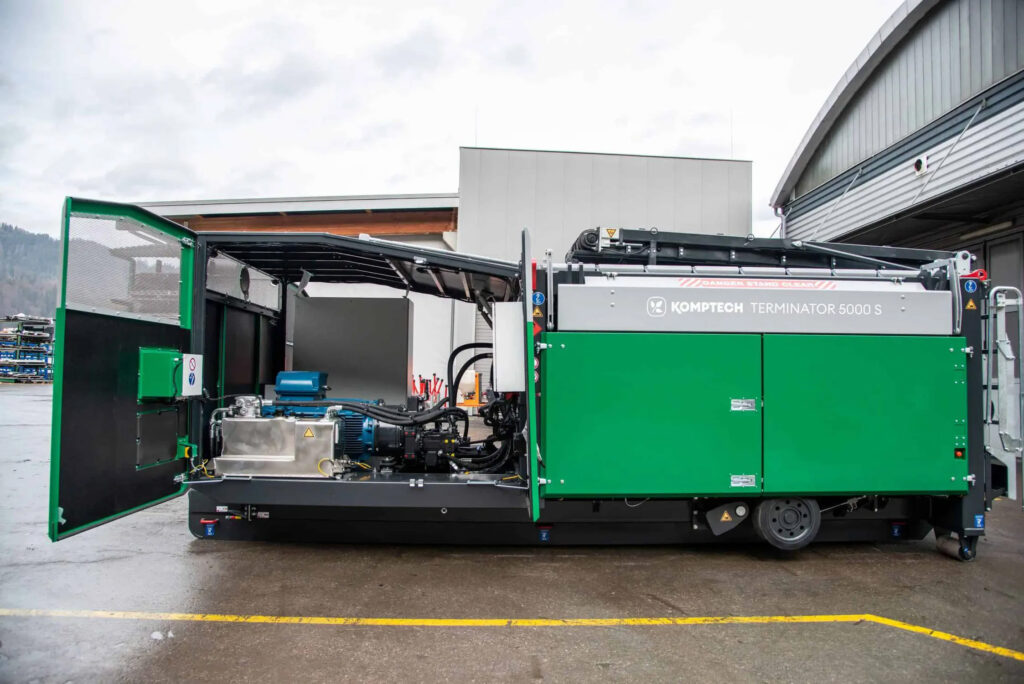

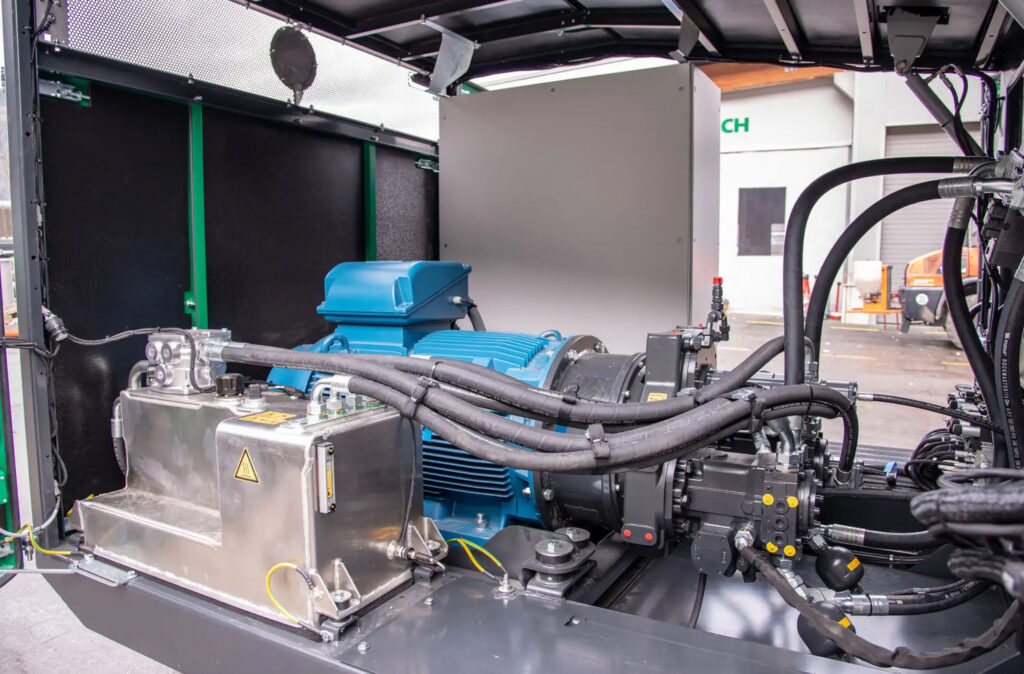

The Komptech Terminator e-mobile is a semi-mobile electric-powered shredder designed for efficiently processing various waste materials like municipal solid waste and bulky waste. It combines the flexibility of a mobile machine with the energy efficiency and low emissions of a stationary electric one, saving up to 70% in energy costs and reducing maintenance requirements. The machine uses an electric motor to drive the hydraulic system, which in turn powers the shredding drum, and it can be powered by renewable energy sources.

The Terminator is one of the most successful single-shaft shredders for all types of waste.
The new e-mobile series adds semi-mobile electric-powered versions to the line-up, featuring maintenance-free electric motors instead of diesel engines. The concept combines the compact design and flexibility of a mobile machine with the energy efficiency of a stationary machine.

Everything possible
The Terminator is able to shred the most difficult materials. Everything is shred to the desired particles size. Applications with drum/opposing comb system variants range from coarse pre-crushing to defined shredding.

High energy efficiency
The electric motor instead of a diesel engine offers a significant advantage in energy costs with its high efficiency. With comparable throughput, 70 % of the energy costs can be saved compared to diesel.

Coarse or fine

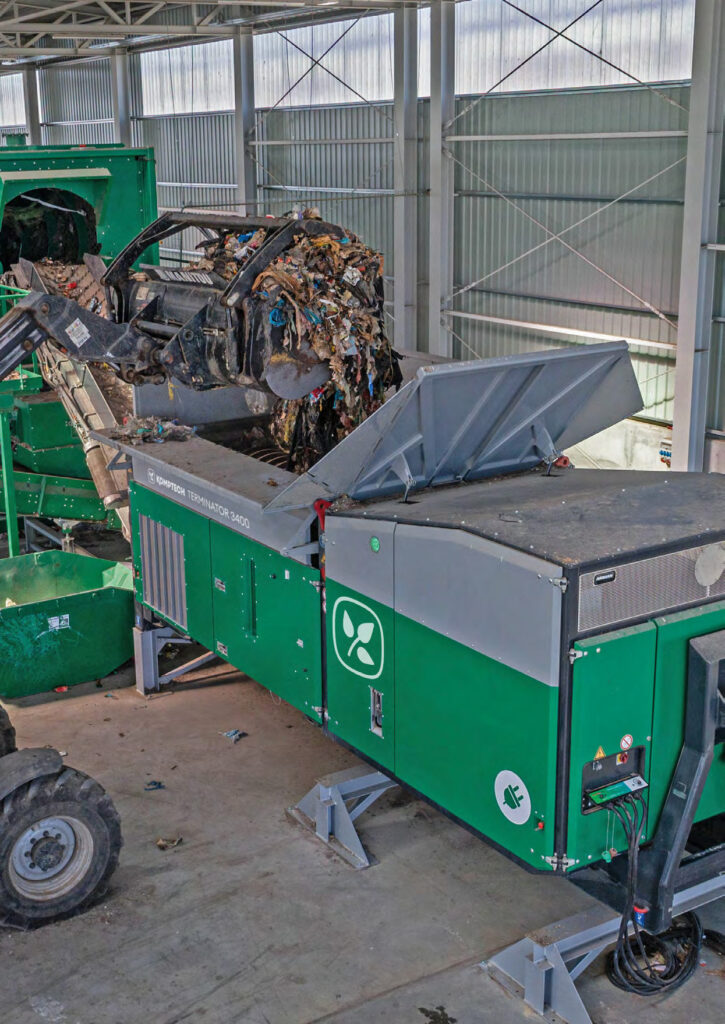

The continuous cutting gap adjustment allows tailoring of the produced particle size to subsequent usage. Completely swivelling of the counter comb provides perfect accessibility for maintenance of the shredding area. Loading made easy Load material into the big hopper — the machine does the rest. Hydraulic folding hopper sidewalls make the already generous shredding chamber even bigger, for a loading volume of up to seven cubic metres.

MODELS
The E-MOBILE is offered in several models to accommodate different power and throughput needs:
• TERMINATOR E-MOBILE 3400:
◦ Engine power: 160 kW
◦ Throughput: up to 45 t/h
• TERMINATOR E-MOBILE 3400 S:
◦ Engine power: 160 kW (dual-sided drum drive)
◦ Throughput: up to 50 t/h
• TERMINATOR E-MOBILE 5000:
◦ Engine power: 200 kW
◦ Throughput: up to 60 t/h
• TERMINATOR E-MOBILE 5000 S:
◦ Engine power: 200 kW (dual-sided drum drive)
◦ Throughput: up to 80 t/h
• TERMINATOR E-MOBILE 6000 S:
◦ Engine power: 280 kW (dual-sided drum drive)
◦ Throughput: up to 80 t/h

E-MOBILE Features and benefits

• Electric drive: The main feature of the E-MOBILE series is its reliance on high-efficiency electric motors instead of diesel engines. This reduces operating costs by up to 70% and eliminates on-site exhaust emissions. It is a quieter, more eco-friendly option for waste management.
• Electric power: Uses a maintenance-free electric motor, eliminating emissions and making it suitable for indoor use.
• Energy efficiency: Can save up to 70% on energy costs compared to diesel models at the same throughput.
• Mobile and flexible: Features a semi-mobile design that is easy to move, with some models equipped with tracks for higher mobility and a high driving speed.
• High mobility: Despite its electric power, the TERMINATOR E-MOBILE is designed for flexibility and can be moved between work sites easily via hook trailer or track undercarriage. A single-plug system allows one person to connect the power cable for fast setup.

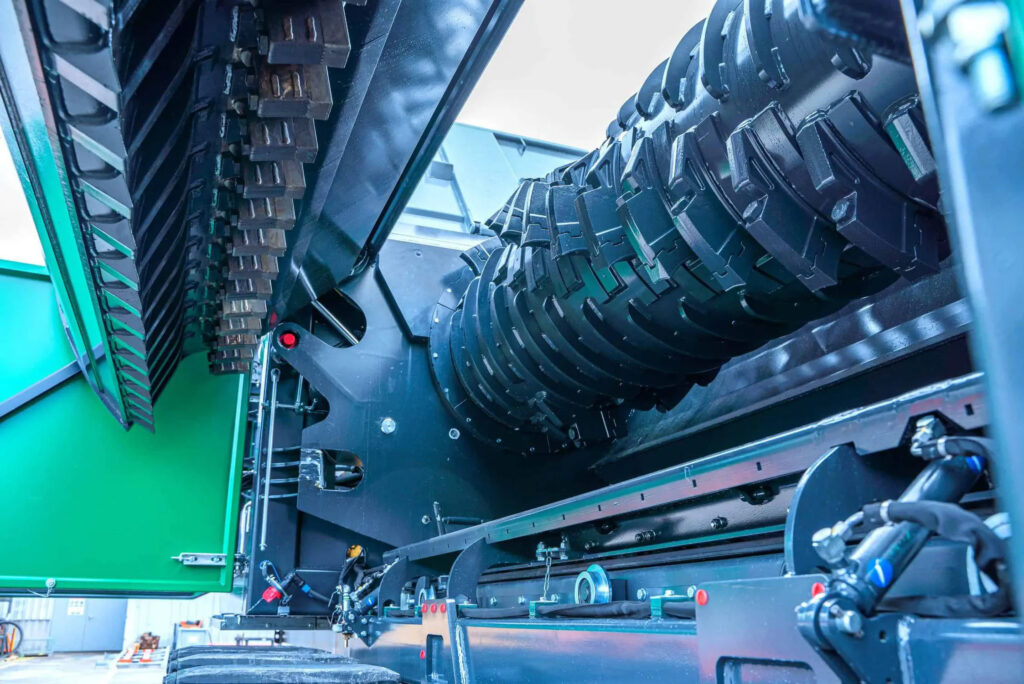

• Versatile shredding: Equipped with a single-shaft shredder drum and a counter comb, it can process a wide range of materials, from coarse to fine, with adjustable cutting gaps. As a low-speed, single-shaft shredder, the Terminator can process everything from household, commercial, and bulky waste to mixed construction and demolition waste, waste wood, and tires.
• Reduced maintenance: The electric drive and fully encapsulated drive train reduce the need for maintenance parts like filters and oil.
• Optimized performance: Features a hydraulic drum drive with load-dependent speed control to optimize power and ensure maximum shredding force.
• Ease of use: Includes a modern operating console and accessible maintenance points, and its battery-powered track models can be maneuvered easily.
• Application-specific drums: Different shredding drums are available to optimize performance based on the material being processed. These include:
◦ F (Fine) unit: Features armoured teeth and wear protectors for consistent shredding and long tooth life, ideal for household and commercial waste.
◦ XXF (Extra Fine) unit: Concentrates shredding force onto fewer teeth, resulting in a more consistent and smaller particle size, suitable for commercial and bulky waste.
