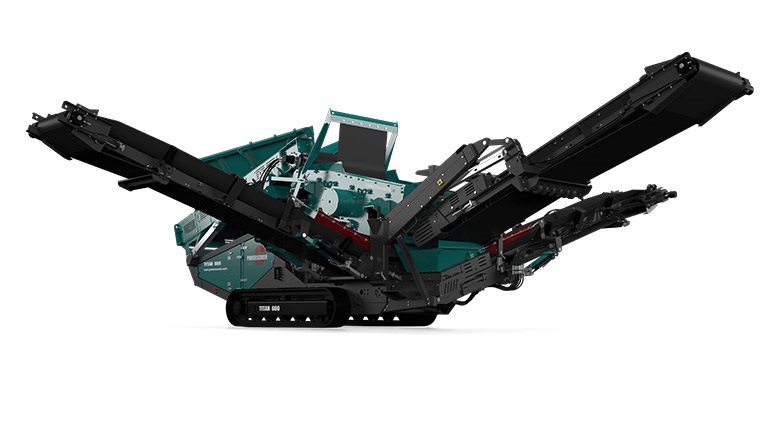

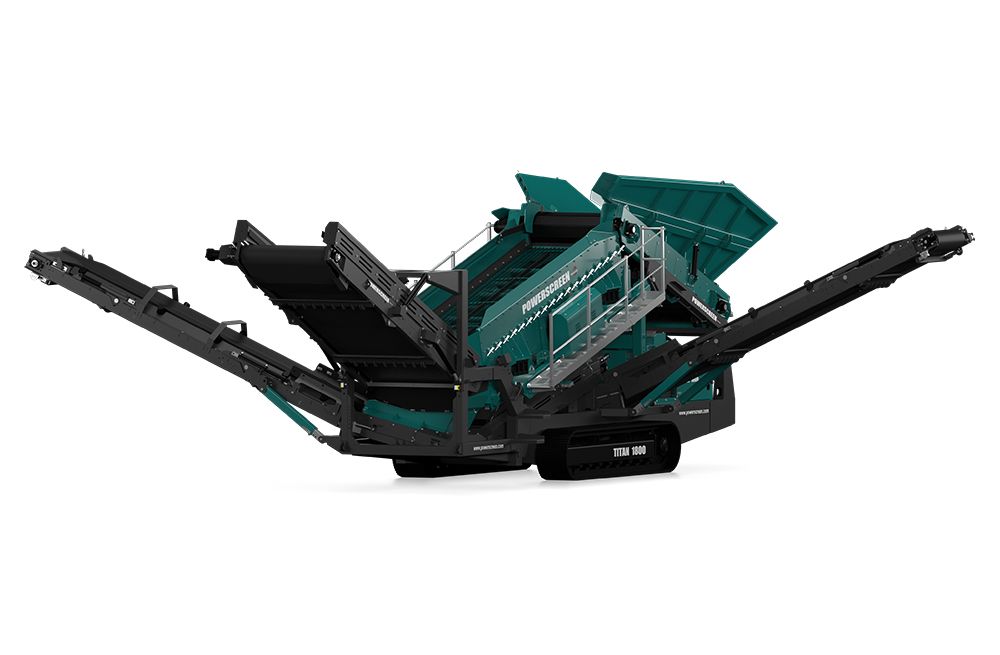

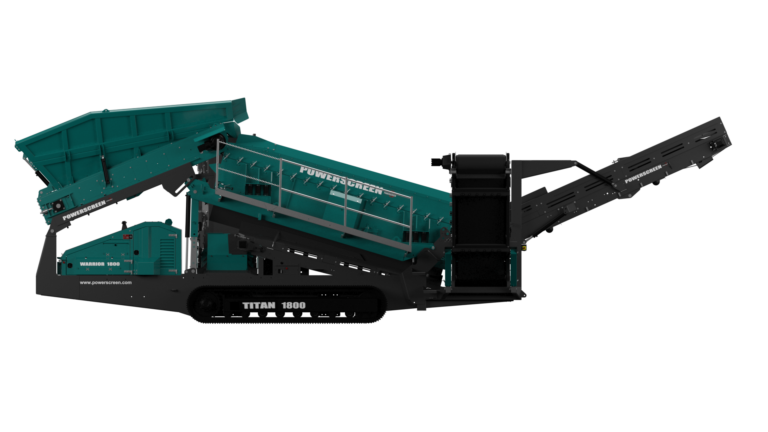

POWERSCREEN Titan 1800
POA
The Powerscreen Titan 1800 is a highly adaptable, heavy-duty mobile scalping screen designed for processing challenging materials in quarrying, recycling, and demolition applications. It features a highly aggressive 16′ x 5′ (4.87m x 1.53m) double-deck screenbox and can achieve an output of up to 600 tonnes per hour.
The Powerscreen Titan 1800 is a highly adaptable two-deck secondary scalping screen engineered to perform exceptionally well in both scalping and precision screening applications. It’s designed to handle even the most challenging materials with ease. This versatile screen is compatible with a variety of media options, including bofor bars, finger screens, woven mesh, and punch plates, ensuring optimal performance across diverse screening needs.
KEY FEATURES
- Heavy duty inclined hopper & belt feeder featuring impact bars & impact rollers.
- Jack up screen facility for access to screen media & collection conveyor.
- Highly aggressive double deck screenbox.
- Quick set up time typically under 15 minutes.
- Media Options: It accepts a wide range of screening media, including bofor bars, finger screens, woven mesh, and punch plates, allowing it to adapt to various materials.
- Excellent classification of materials as a result of long screen deckOPTIONS
• Heavy-duty plate conveyor feeder
• Hydraulically foldable hopper extension
• Stud belt for medium or fine grain belts
• Overband magnetic separator
• Dual-power drive 75kW
• Impact chain curtain at the screen box outlet
• Wide selection of sieve media, the right solution for every application
• Impact chain curtain at the screen box outlet
• Radio remote control for operating the system
UDC Finance available – Find out more
| Output Potential | – Up to 600 Tonnes Per Hour. |
|---|---|
| Hopper | – Hopper capacity: 6.8m3 (8.9 cu. yd.) |
| Screenbox | – Screenbox Size: 4.87m x 1.53m (16' x 5'), 2-deck. |
| Weight | – Approx. 29,500 kg |
| Working Dimensions | – (L x W x H) : 14.26m x 12.6m x 4.55m |
| Transport Dimensions | – (L x W x H) : 15.38m x 2.96m x 3.39m |
| Applications | – Scrap, Quarrying & Demolition, Recycling & Energy |
| Feeder | – 1300mm (52”) wide heavy-duty belt feeder |
| Powerunit | 15.38m x 2.96m x 3.39m |
| Working Dimensions (L x W x H): | – Fuel Tank Capacity: 336 L (89 US Gal). |
| Oversize Tail Conveyor | – 1400mm (56’’) wide. |
| Fines Size Side Conveyor | – 900mm (36”) wide. |
| Mid Size Side Conveyor | – 900mm (36”) wide. |
