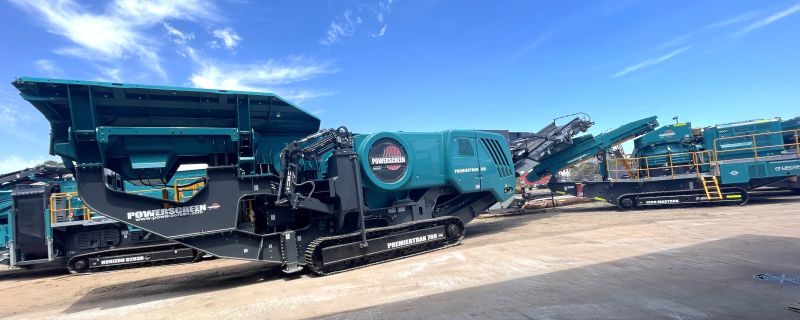

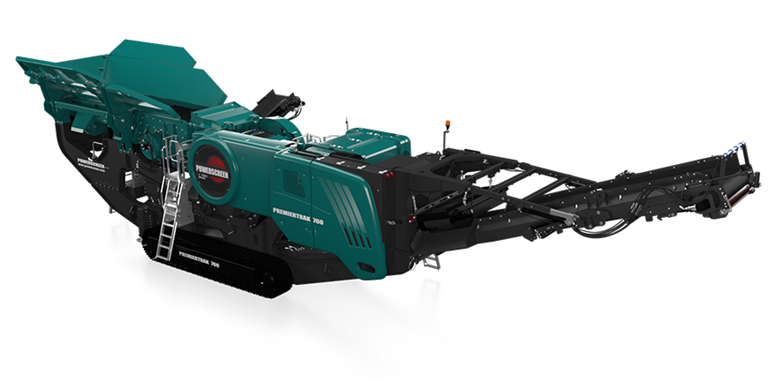

The Premiertrak 760 Jaw Crusher incorporates the Terex Jaques JW55 single toggle jaw, helping to maximise throughput capacity. This machine also features a vibrating pan feeder linked to an aggressive independent pre-screen, which provides essential removal of fines material before it reaches the chamber.

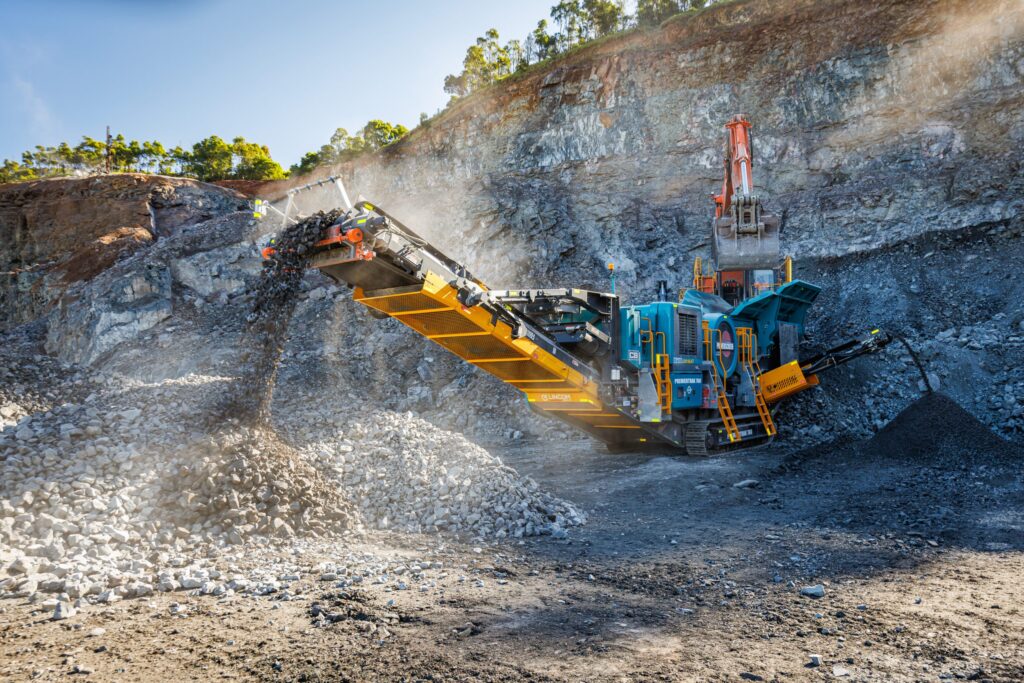

It can be applied to aggregate materials such as sand, gravel, blasted rock, and river rock, and assists in recycling construction and demolition waste, as well as overburden foundry waste.

The Premiertrak 760 offers a throughput capacity of up to 750 tonnes per hour depending on its application and material. It also has a direct drive chamber which is powered via a hydraulic coupling.

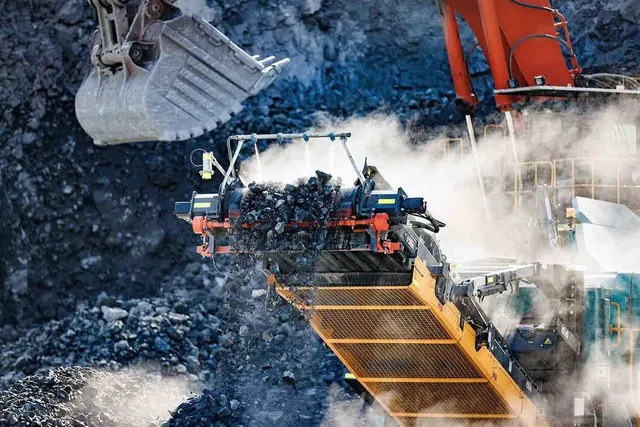

Its large 10m³ hopper has hydraulically folding sides and a wedge clamp system ensuring faster set up times and it has a vibrating pan feeder which is linked to an aggressive independent pre-screen, which provides essential removal of fines material before it reaches the chamber.

FEATURES & BENEFITS

• • • Direct Drive System: Powers the chamber directly, providing higher power to the jaw compared to hydrostatic models.
    • Pre-Screen System: An aggressive independent pre-screen removes fine material before it reaches the chamber, reducing wear and improving efficiency.
    • The Premiertrak 760’s other features include a pre-screen, a power unit with a fuel tank capacity of 1000 litres and a hydraulics tank capacity of 900 litres, a heavy-duty tracks system, and plant controls and options to suit a quarry site’s wants and needs.
    • Product Conveyor: 1400mm (55″) wide with a discharge height of 4.5m (14′ 9″). Its product conveyor has a discharge height of 4.5 metres and a stockpile volume of 136m³. It features a hydraulic raise and head section for service access and maintenance and also has impact bars and wear resistant liners at feed point, with a high-quality scraper at the head drum.
    • Setting Range: Minimum CSS of 75mm (3″) and maximum of 225mm (9″).
    • Operational Ease: Includes a user-friendly interface for clear information display and a hydraulic hopper locking mechanism for faster setup.
    • Its pulse telemetry fleet management system allows its performance to be monitored in real-time, promoting proactive maintenance and minimising downtime on site.
    • Additionally, the Premiertrak 760’s product conveyor has a dust suppression system with sprays bars and atomiser nozzles mounted over its crusher mouth, product conveyor feed and discharge points. It is piped to an inlet manifold for the client’s pressured water supply.
