POWERSCREEN Chieftain 1400

POA

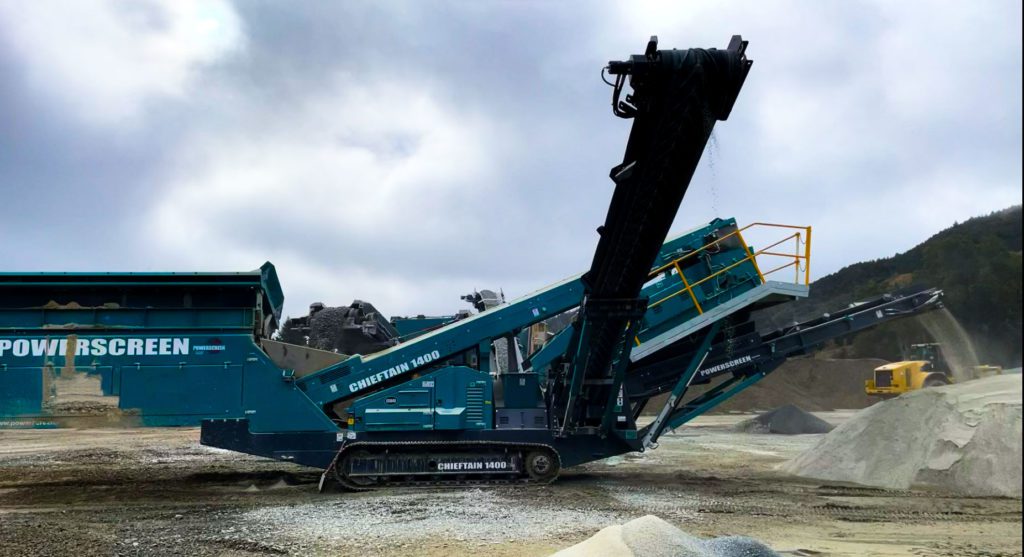

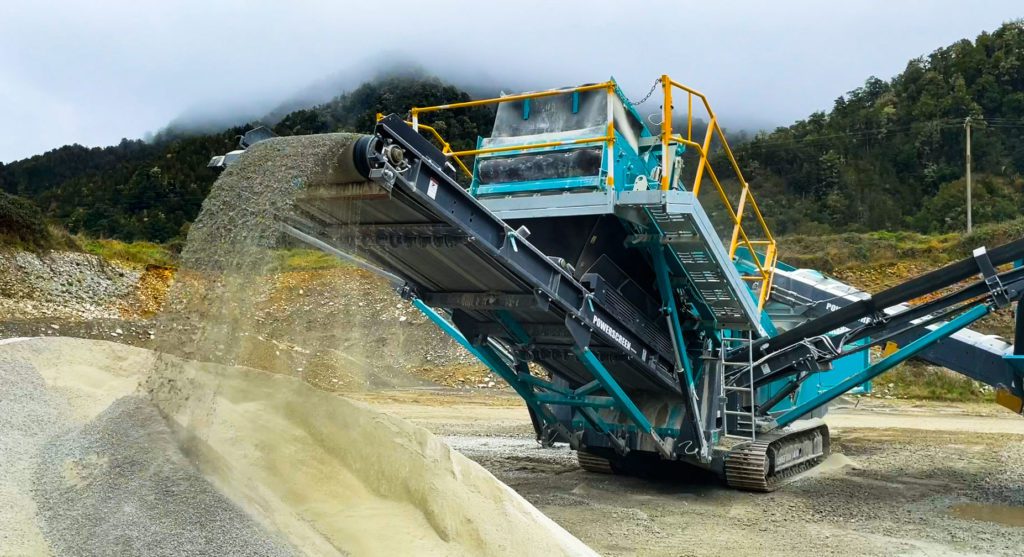

The Powerscreen Chieftain 1400 is one of Powerscreen’s most popular screening products and is ideally suited for small to medium-sized operators and contractors who require a versatile product capable of operating in a number of applications such as sand and gravel, aggregates and recycling.

User benefits include hydraulic folding conveyors for a quick set-up time, screen walkways and access ladders for ease of maintenance, and a drop-down tail conveyor to aid screen media changes.

FEATURES & BENEFITS

  • Radio-controlled tipping grid.
  • Integrated high-capacity variable speed belt feeder.
  • Grease-filled patented 4-bearing, 2-deck screen box.
  • Hydraulic screen angle adjustment.
  • Hydraulic screen tensioning (bottom deck).
  • Screen walkway and access ladder.
  • Hydraulic folding conveyors.
  • Engine protection shutdown system.

UDC Finance available – Find out more

output-potential

Up to 400 Tonnes Per Hour.

hopper

Capacity: 7.5m³
Variable Speed
Reject Grid as Standard

feeder-conveyor

Width: 1050mm
Variable Speed

main-conveyor

Width: 1050mm
Hydraulically Adjustable

screenbox

4 Bearing, 2 Deck Screenbox
Size: 3.33m X 1.53m

side-conveyor-midsize-oversize

Width: 650mm
Discharge Height: 4.49m
Individual Variable Speed

tail-conveyor

Width: 1200mm
Discharge Height: 3.91m

weight

24,900kg (Tracked)
22,000kg (Wheeled)

working-dimensions

Width: 16.2m
Length: 16.4m, 17.9m (Wheeled)
Height: 4.8m, 5.33m (Wheeled)

transport-dimensions

Width: 2.75m
Length: 15.4m, 16.95mm (Wheeled)
Height: 3.2m, 3.9m (Wheeled)
