Multi-talented Midsize

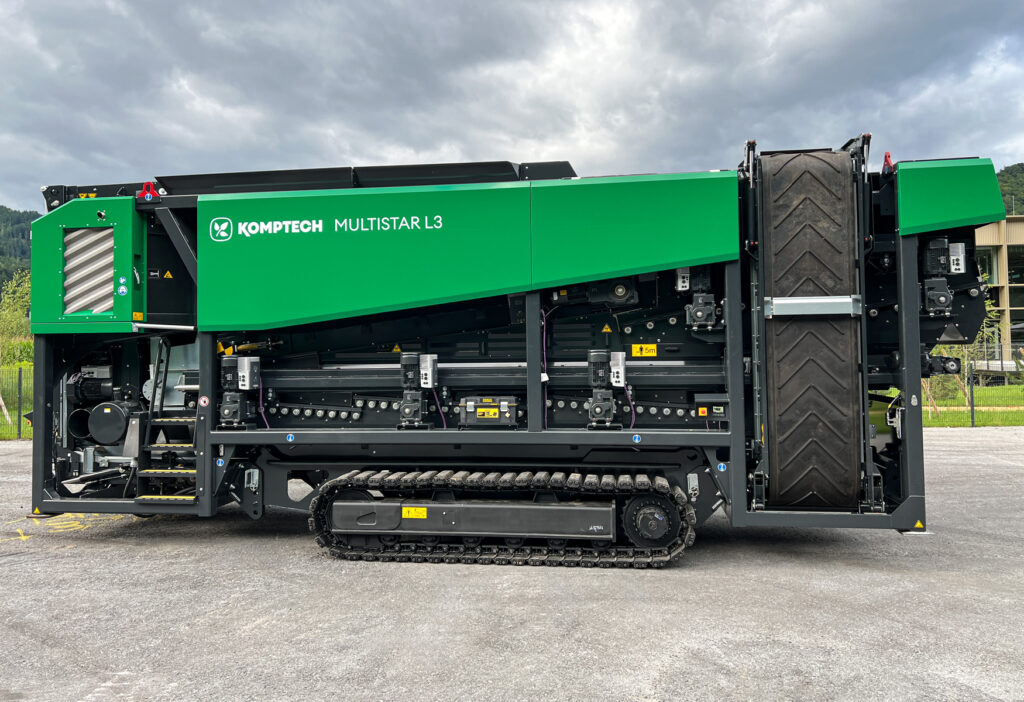

The Multistar L3 is a further improvement of its line of Multistar star screens. High throughput across a wide range of applications, combined with the patented cleaning system for an outstanding degree of separation even with wet materials, make it the most capable machine in its class.

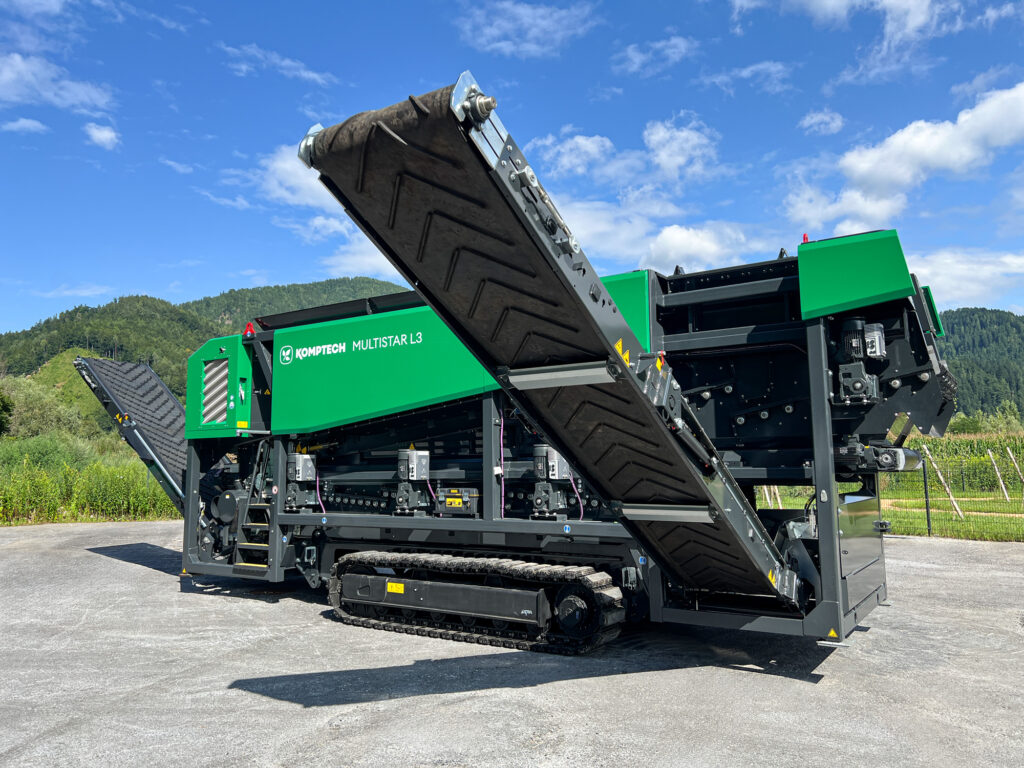

The Komptech Multistar L3, 3-fraction star screen excels at screening biomass and crushed wood.

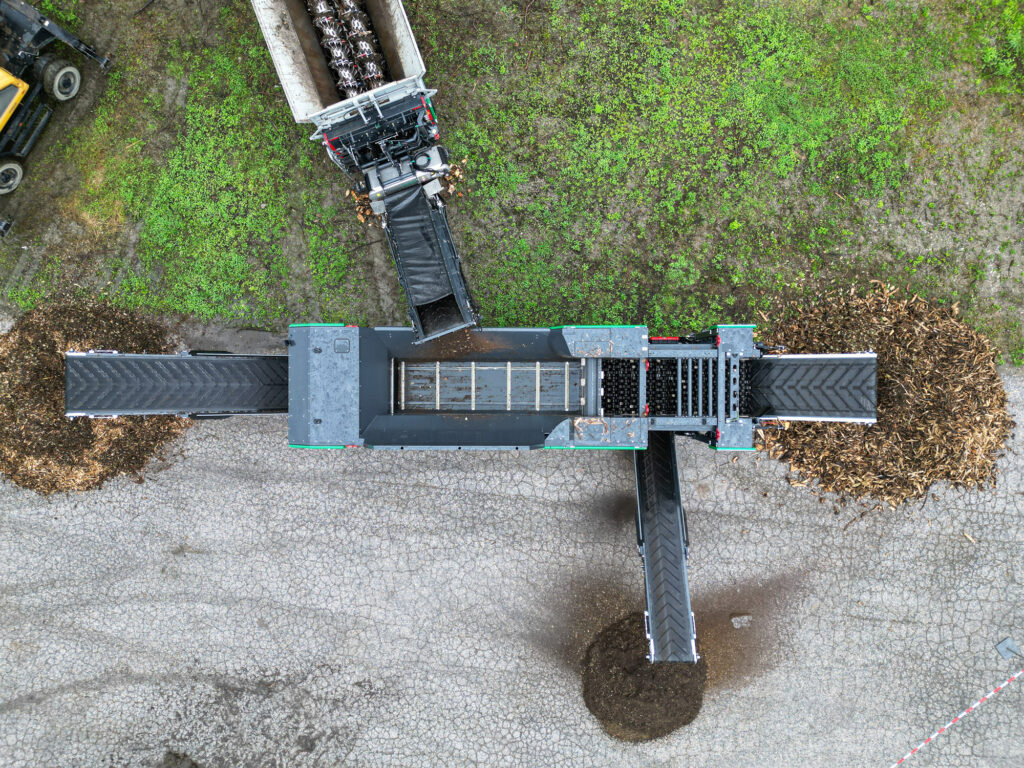

The star screen has a chain-driven bunker with a distribution roller at the end that ensures that the material evenly reaches the top star deck. The Multistar L3’s 2 star decks are speed adjustable to allow a perfect regulation of fractions.

With a 125A plug, the Komptech Multistar L3 star screen can be connected to the mains so that it can be run without emissions.

The Komptech Multistar L3 is available in 3 different types. Below you can find the fractions that the star screens obtain. At the beginning of each rental period, we consider together which type is most suitable for your screening operations.

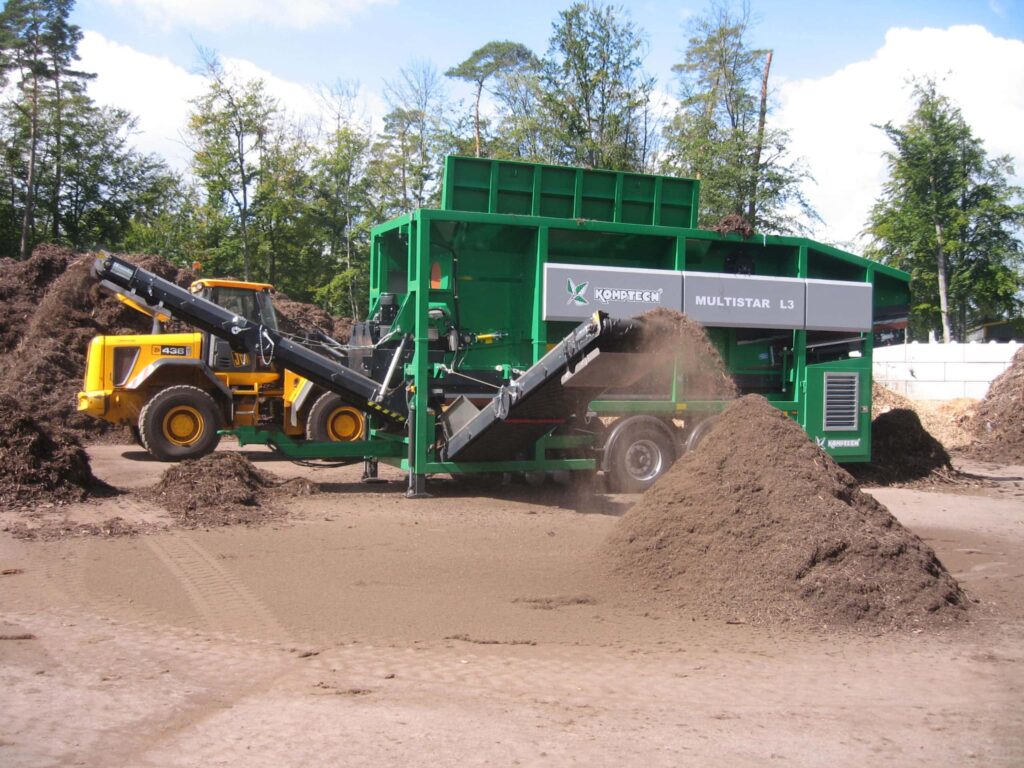

The Komptech Multistar L3 is one of the most successful and widely used star screen machines on the market. Whether you’re processing mulch, soil or compost, the L3 efficiently produces either 3- or 2-fraction separation, in one pass, even with wet material. An electric drive with intelligent control unit and easy touch panel operation keeps your screening operation running smoothly with low noise. An extended coarse screen is available to boost throughput for applications where coarse screening can cause bottlenecks. Additional separation options include wind sifting (mids and overs) and ferrous metals separation.

Applications

The Komptech Multistar L3 is a versatile machine designed for processing a variety of materials:

• Compost and soil
• Woody biomass and waste wood
• Bark and mulch
• General organic and industrial waste

Features

• Function: The machine is a powerful 3-fraction star screen, meaning it separates input material into three distinct product sizes: overs, mids, and fines.
• Throughput: It offers a high throughput of up to 250 m³/h, making it highly efficient for a wide range of applications.
• Electric Drive: The Multistar L3 features an all-electric drive system, which can be powered by an onboard diesel generator or directly from the main power grid. This results in lower energy and maintenance costs compared to diesel-hydraulic machines.
• Patented Cleaning System: The patented “Cleanstar” system uses wear-resistant cleaning elements on each star to clear the gaps between adjacent stars with every rotation. This prevents material from sticking, allowing for continuous, stoppage-free screening even with wet or difficult materials.
• Adjustable Particle Size: The size of the final product can be easily adjusted within seconds by varying the rotation speed of the star shafts using an intuitive touchscreen control panel.

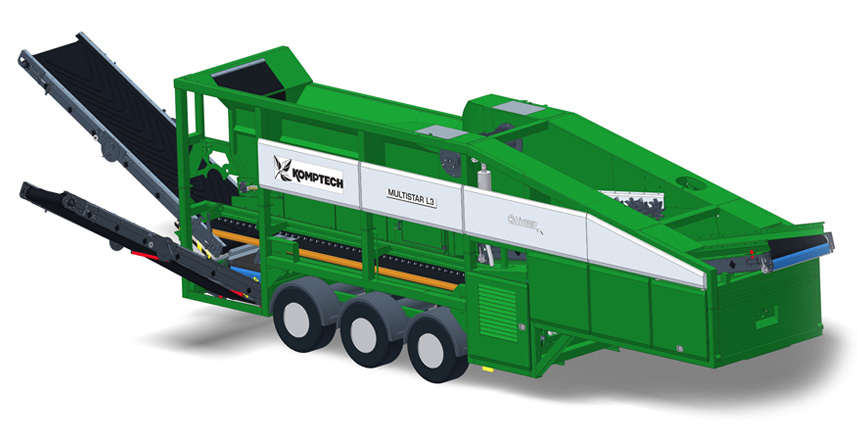

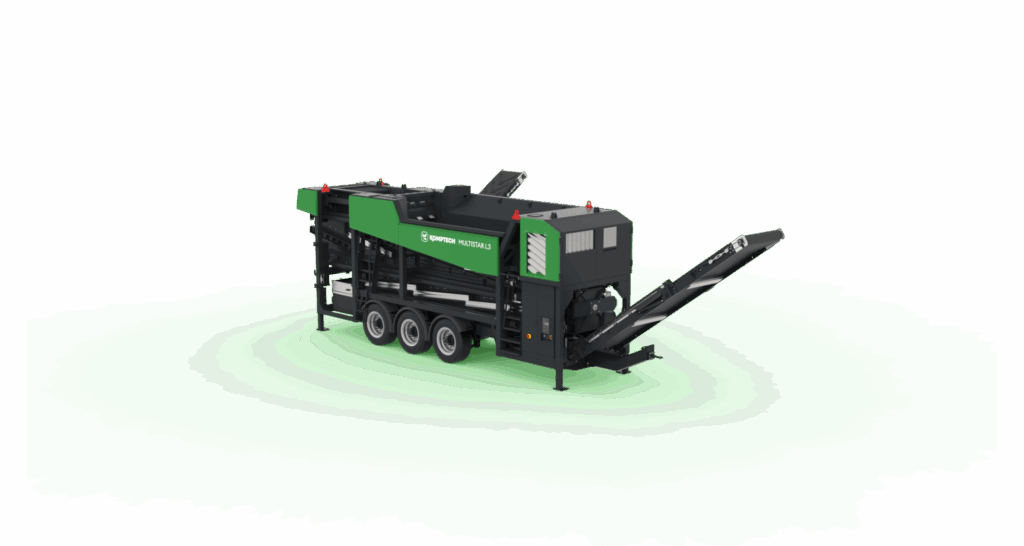

• Mobility: It is typically built on a central-axle-trailer or semi-trailer chassis, providing high mobility for use across multiple sites.
• Additional Options: Various optional features are available, including a wind sifter for separating light materials and magnetic separators for removing ferrous metals.
