Electric-powered mobile trommel

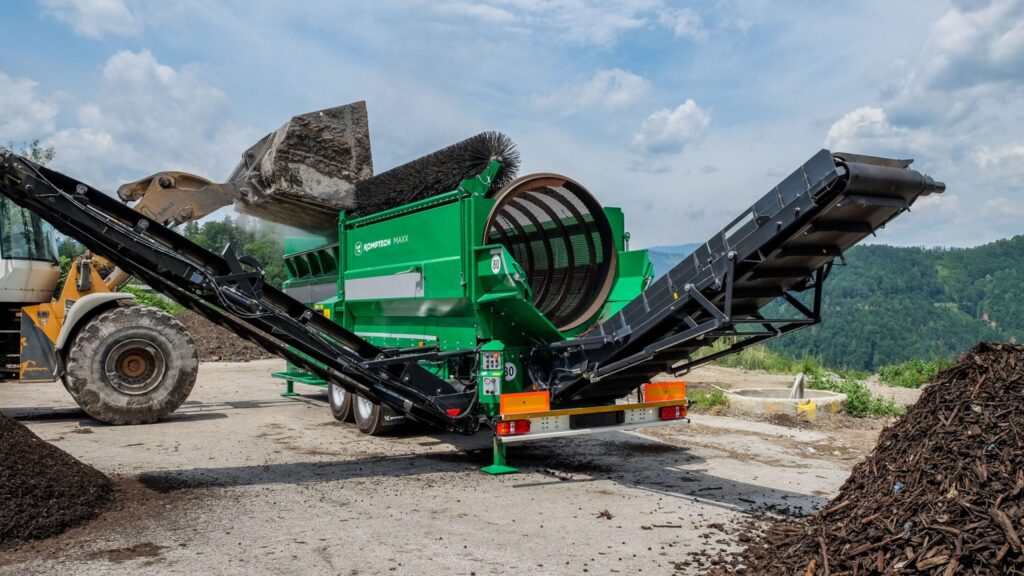

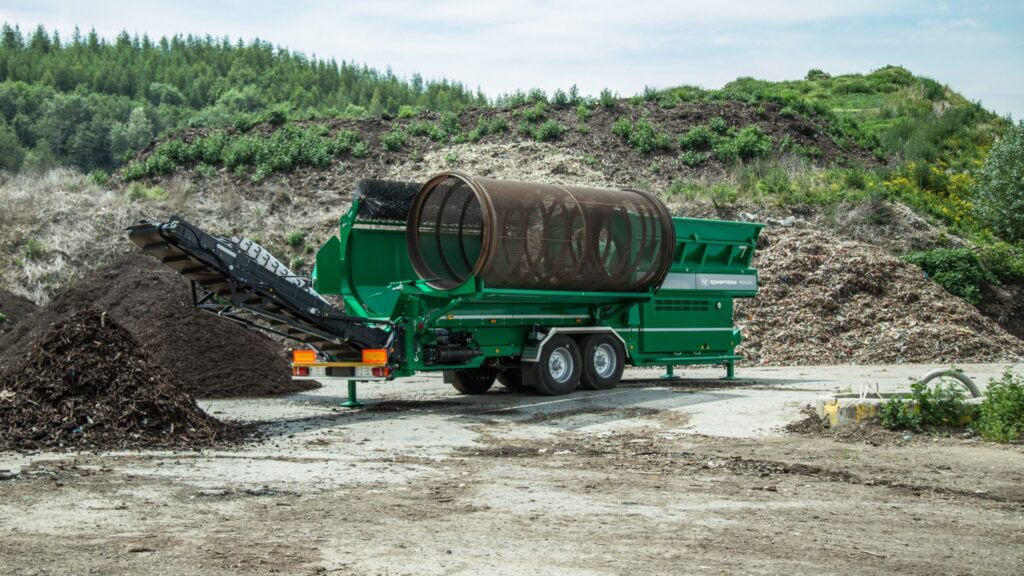

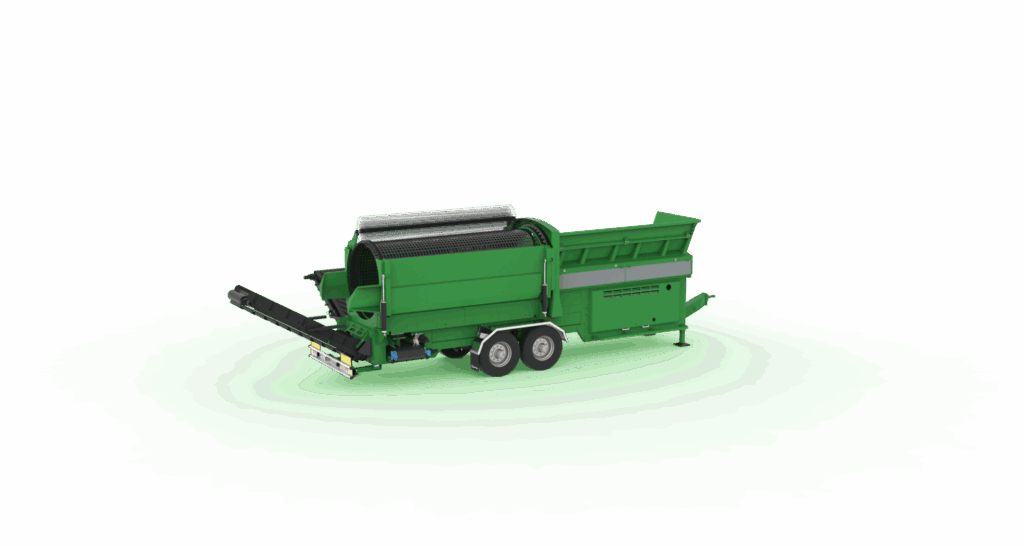

The Komptech Maxx E is an electric-powered mobile trommel screening machine designed for efficiency in medium to large-scale composting and waste processing operations. It is manufactured by Komptech, a leading international manufacturer of machinery for mechanical and biological waste treatment.

The Maxx drum screen was built for use in mid to large-sized composting operations. Its rugged construction and high-performance components make it suitable for almost any screen application, and it is a professional solution for contracting companies.

An electrically driven variant is available as alternative: On the “E“variant, electric motors are used in place of hydraulic drives. Power comes directly from the mains or, when required, is produced by an integrated diesel generator. The electric mode yields a reduction in energy consumption and results in savings in replacement/consumable parts and servicing costs.

Simple cleaning

The side walls can be hydraulically lowered and the drum lifted out for easy removal of crusted material. During operation, an adjustable round brush along the entire length of the screen provides efficient drum cleaning.

Costs saving With Maxx E

On the E version, electric motors are used instead of hydraulics Saving potential mains driven compared to hydraulic drive:

• up to 75% lower energy consumption

• up to 30% lower consumable parts costs

• up to 25% lower operating costs

Key Features and Benefits

• Electric Drive: The “E” stands for electric. It uses electric motors that can be powered by a direct grid connection or an optional, built-in diesel generator. This design significantly reduces energy costs, maintenance requirements, and CO2 emissions compared to traditional hydraulic drives.
• High Performance: The Maxx E is built with robust components suitable for a wide range of screening tasks and offers high throughput.
• Large Hopper: It features a generous 5 cubic meter capacity hopper, allowing for efficient feeding with large loader buckets.
• Ease of Maintenance: The machine is designed with user-friendly maintenance in mind, including hydraulically folding side walls for easy cleaning and a drum change process that can be done without tools.
• DRUMGRIP Drive: It utilizes a patented, self-tensioning, and load-dependent DRUMGRIP drive system, which provides quiet and low-wear operation.
• Versatility: The Maxx E is suitable for processing various materials, including compost, green waste, wood, and other organic residues.
• Cost Efficiency: Electric operation can result in significant savings, including up to 75% lower energy costs when running on ground power, and reduced maintenance costs (no diesel unit servicing, fewer consumable parts).
