Komptech Terminator Direct

POA

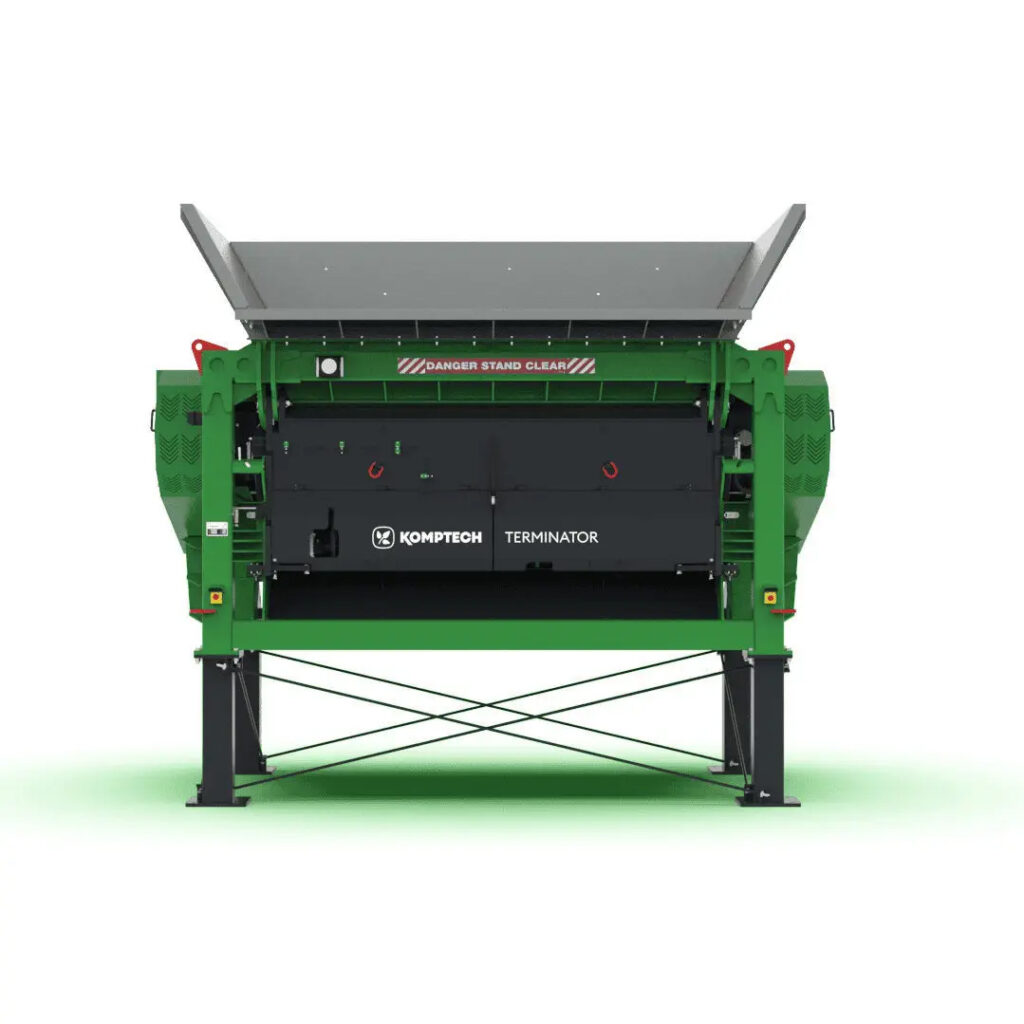

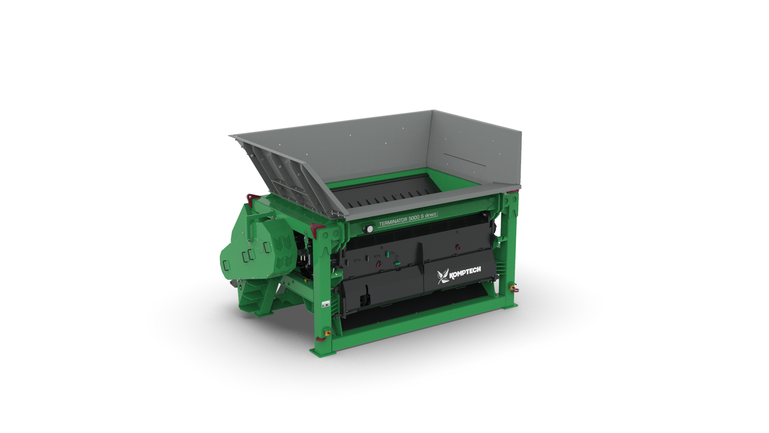

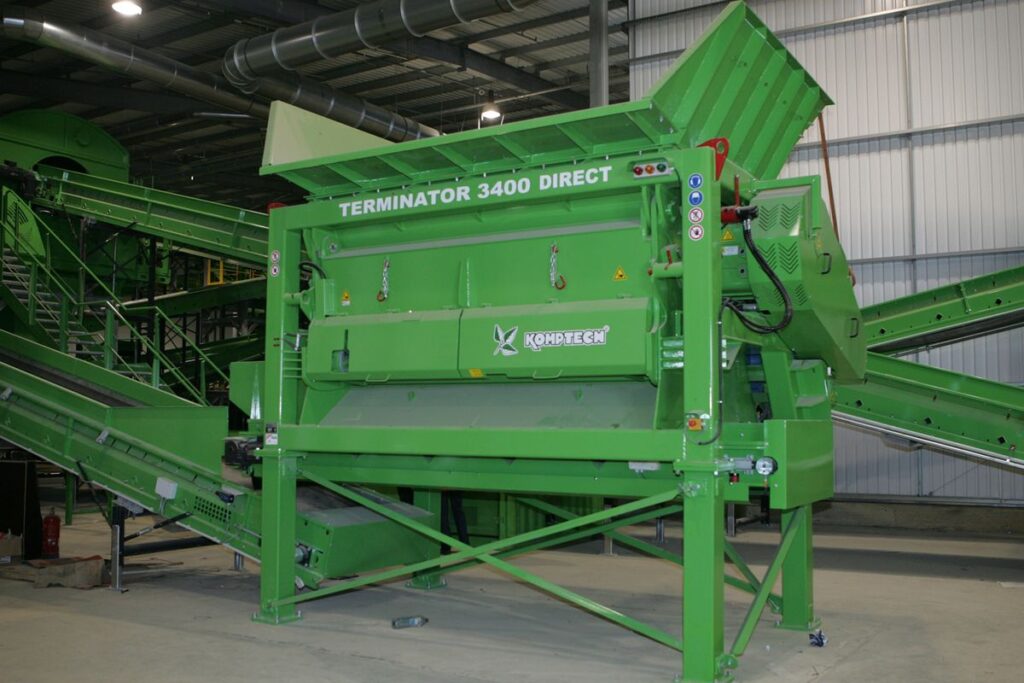

The Terminator direct is a stationary low speed, high torque single-shaft shredder for all types of waste. Power is delivered by an electric motor with minimal maintenance and transferred to the shredding drum by a mechanical drive with optimum efficiency. The terminator can be a standalone shredder or integrated into a recycling system.

Description
The Terminator direct is a stationary low speed, high torque single-shaft shredder for all types of waste. Power is delivered by an electric motor with minimal maintenance and transferred to the shredding drum by a mechanical drive with optimum efficiency.

Everything possible

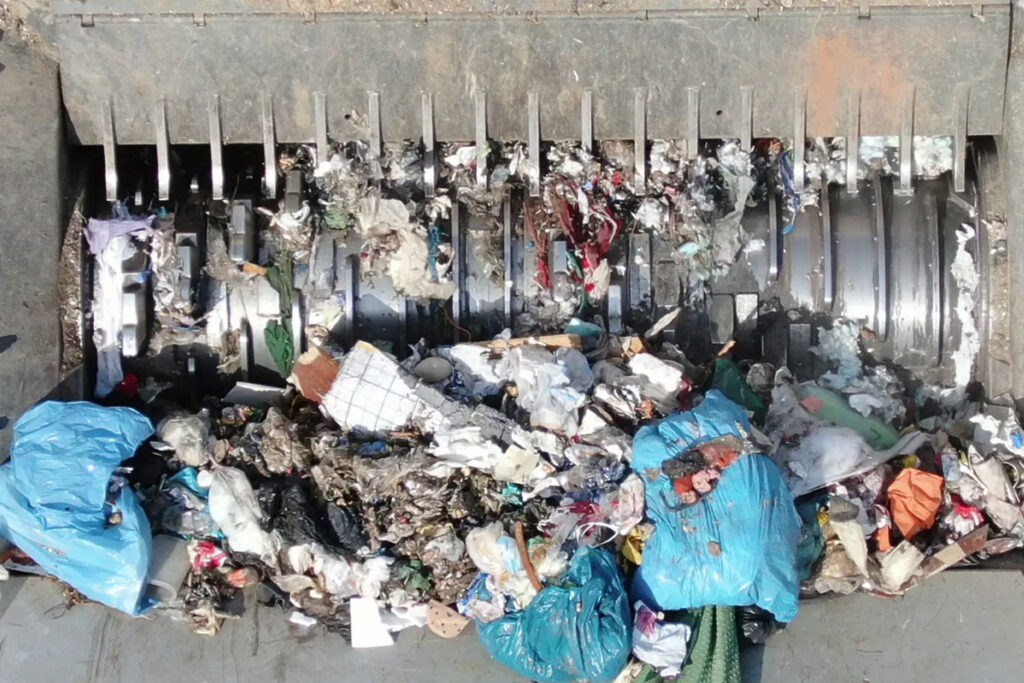

The Terminator can shred the most difficult materials. Everything is shred to the desired particles size. Applications with drum/opposing comb system variants range from coarse pre-crushing to defined shredding.
Coarse or fine

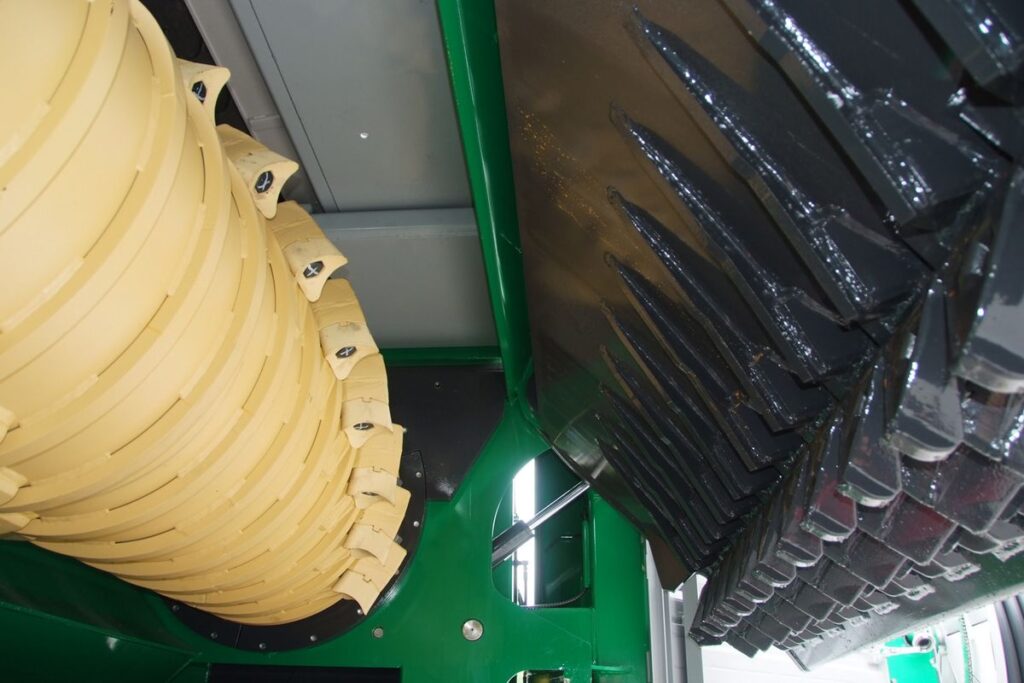

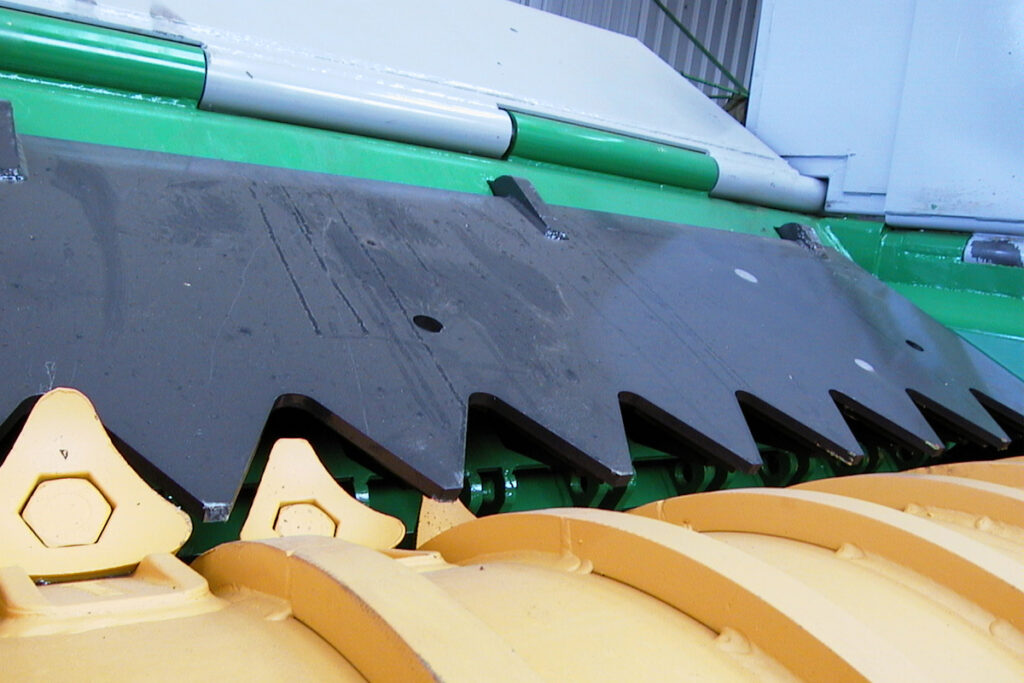

The continuous cutting gap adjustment allows tailoring of the produced particle size to subsequent usage. Completely swivelling of the counter comb provides perfect accessibility for maintenance of the shredding area.

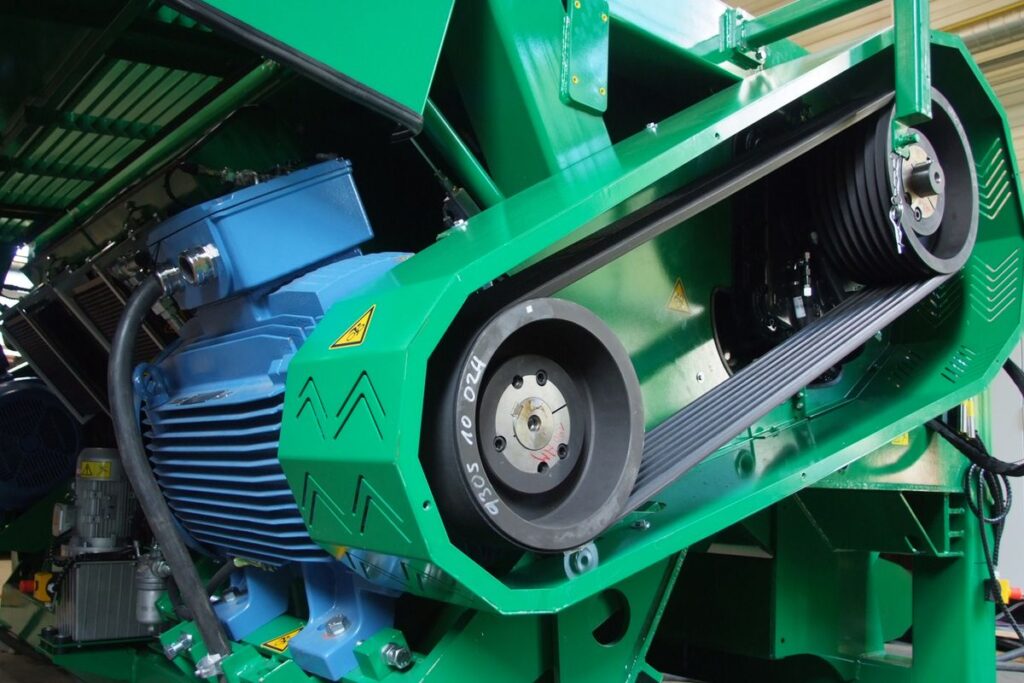

Efficient drive

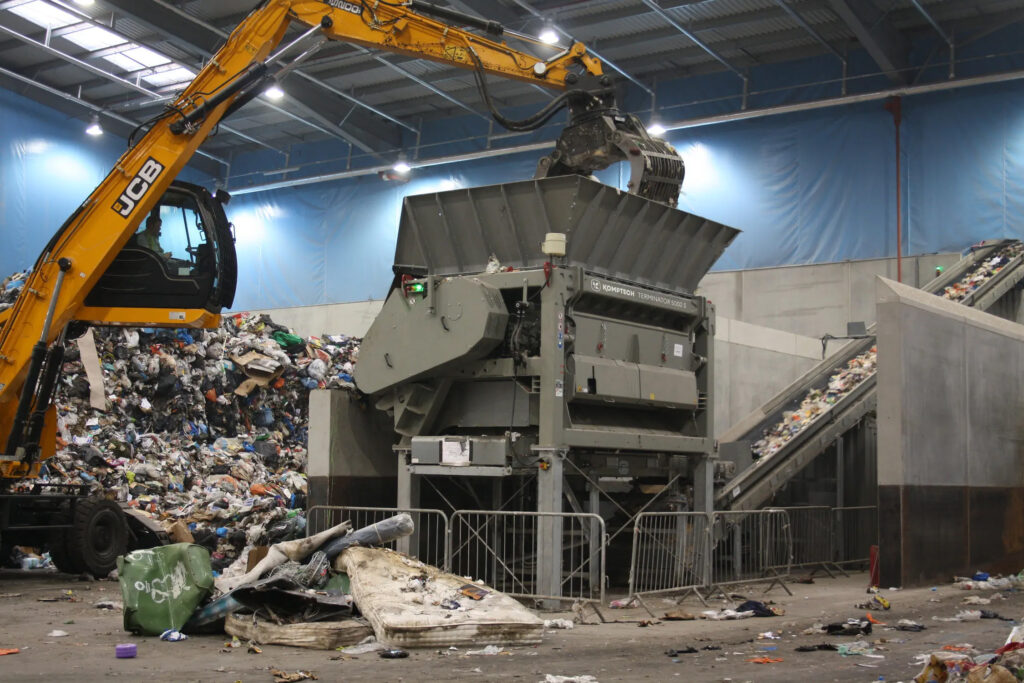

The cost-effective mechanical drive offers low energy costs due to high efficiency. The installation into the plant chain is simple: Set up – connect – power on. Further features are two speeds for adaption to material and automatic reverse control.

Key features
    • Electric drive: An electric motor provides the power, which reduces operating costs and improves energy efficiency. This also significantly lowers maintenance efforts.
    • Slow speed, high torque: The shredder operates at a low speed but delivers high torque, allowing it to handle even tough or bulky materials effectively.
    • Variable speed control: It features load-dependent, continuously variable speed control, which enhances performance and prevents blockages.
    • Adjustable particle size: Operators can precisely control the output particle size by adjusting the cutting gap and counter-comb elements.
    • Versatile waste processing: The Terminator Direct can process a wide range of materials, including:
    • Municipal solid waste (MSW)
    • Bulky waste
    • Commercial waste
    • Construction and demolition debris
    • Wood and green cuttings
    • Recyclable materials
    • Low noise and dust: The slow-speed shredding process minimizes both noise and dust emissions

UDC Finance available – Find out more

Motor size from:

75kW-320kW

RPM from:

7rpm-28rpm

Throughput from:

15ton/hour - 75ton/hour

Drum length:

3000mm x Drum diameter 1050mm.

Number of shafts:

single shaft

Application:

for waste

Other characteristics:

rugged, energy-efficient

Power

Max.: 320,000 W
Min.: 75,000 W

Output

Max.: 75 t/h
(46 lb/s)
Min.: 15 t/h
(9 lb/s)

Rotor diameter

1,050 mm
(41 in)

Rotational speed

Max.: 28 rpm
(176 rad.min-1)
Min.: 14 rpm
(88 rad.min-1)

Operating weight

Max.: 15.8 t
(17.4 us ton)
Min.: 13.6 t
(15 us ton)
